Warning and mode indicators

The following warnings and mode indications can be displayed:

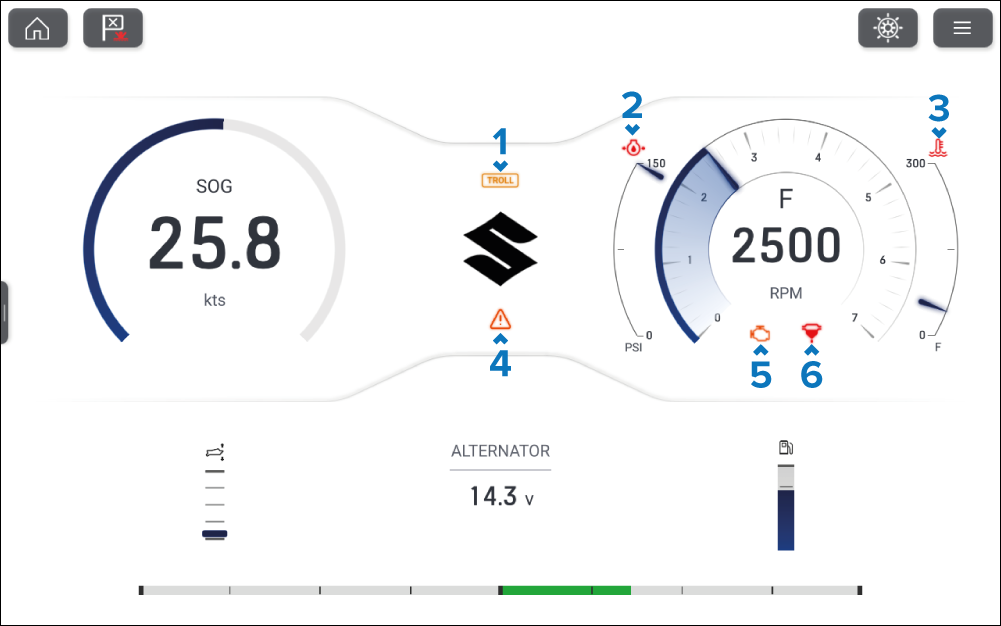

SuzukiWarnings and modes

  1. Troll icon — The Troll icon is displayed when Trolling mode is active.

  2. Oil pressure icon — The Oil pressure icon will turn red when the engine is reporting low oil pressure.

  3. Coolant icon

    — The Coolant icon will turn blue if the coolant temperature is too low and red if the coolant temperature is too high.

  4. Check system icon

    — The Check system icon is displayed when a system fault is being reported.

  5. Engine fault icon — The Engine fault icon is displayed when the engine is reporting a fault condition.

  6. Water in fuel icon

    — The Water in fuel icon is displayed when the system has detected water in the fuel.

Items 1 and 4 are system-wide indicators; items 2, 3, 5 and 6 are displayed for each engine.
