Tide station information

When using compatible cartography, Tide station information is available at the location of Tide stations.

Tide station symbol

ChartTide station

The location of Tide stations is marked on the Chart using a diamond-shaped symbol with a ‘T’ in the middle. The symbol color may vary.

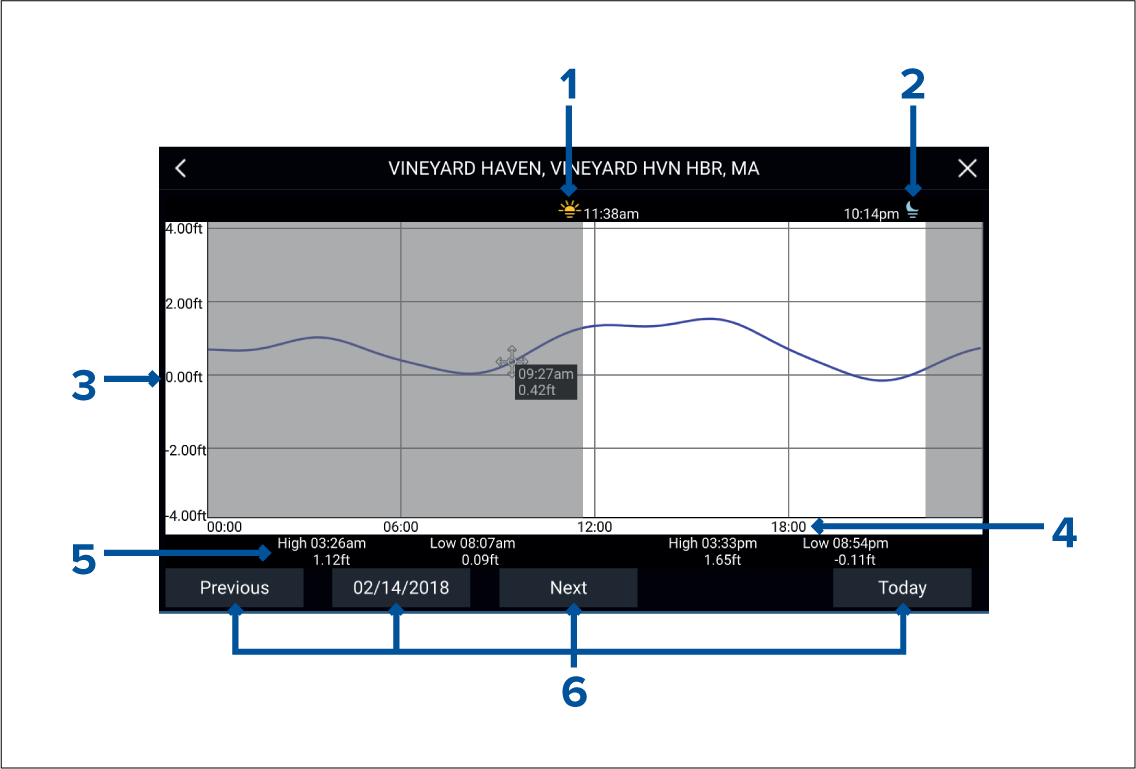

Tide graph

ChartTide graphTide graphs can be accessed by selecting Tide station from the Tide station’s context menu.

  1. Sunrise — Indicates time of sunrise.

  2. Sunset — Indicates time of sunset.

  3. Height — Provides tide height in selected units.

  4. Time — Indicates time of day.

  5. Low / High tide — Indicates the time of low and high tides.

  6. Time and date options — Use the buttons to view previous, next or today’s tide predictions, or enter a date by selecting the date field.
