Steering angle indicator

The steering angle indicator provides an onscreen indication of the steering position.

Mercury appSteering angle indicatorThe Steering angle indicator is available in the Mercury app and the Mercury sidebar.

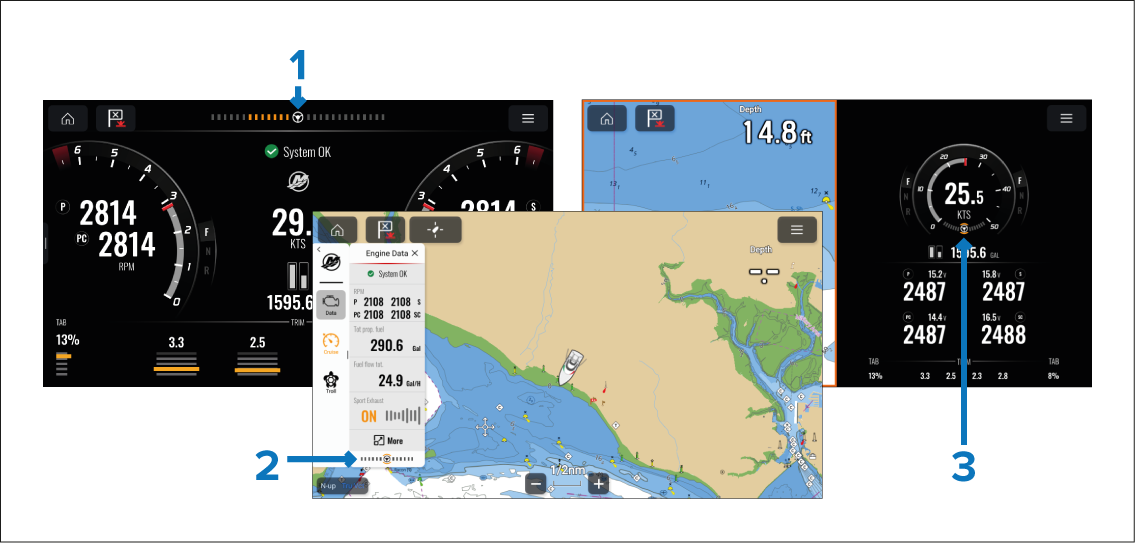

Figure 1. Steering angle indicator locations

  1. Location in fullscreen app page.

  2. Location in Mercury sidebar.

  3. Location in splitscreen app page.

The Steering angle indicator is non-linear and is more sensitive at lower steering angles.

Note

The steering angle indicator is disabled when a Mercury joystick is active.
