Status and warning indicators

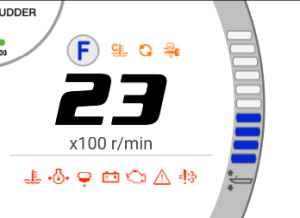

The engine page will display indicators for engine status and warnings.

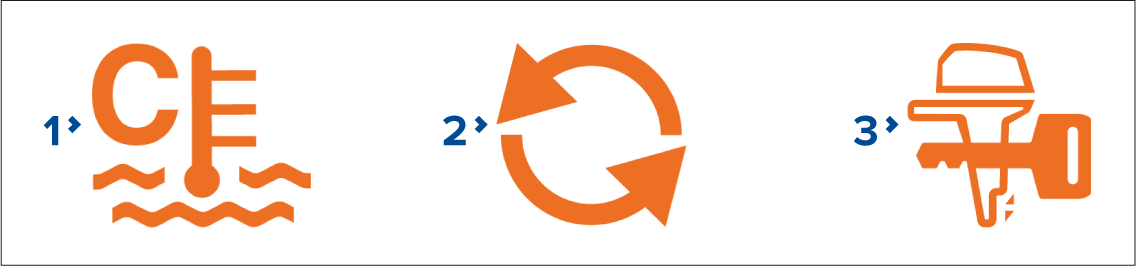

Yamaha app Status indicator

These status and warning symbols are described below:

1. Yamaha app StatusEngine warming upEngine warming up status

2. Yamaha app StatusSynchronizationSynchronization status

3. Yamaha app StatusImmobilizer lockImmobilizer lock status

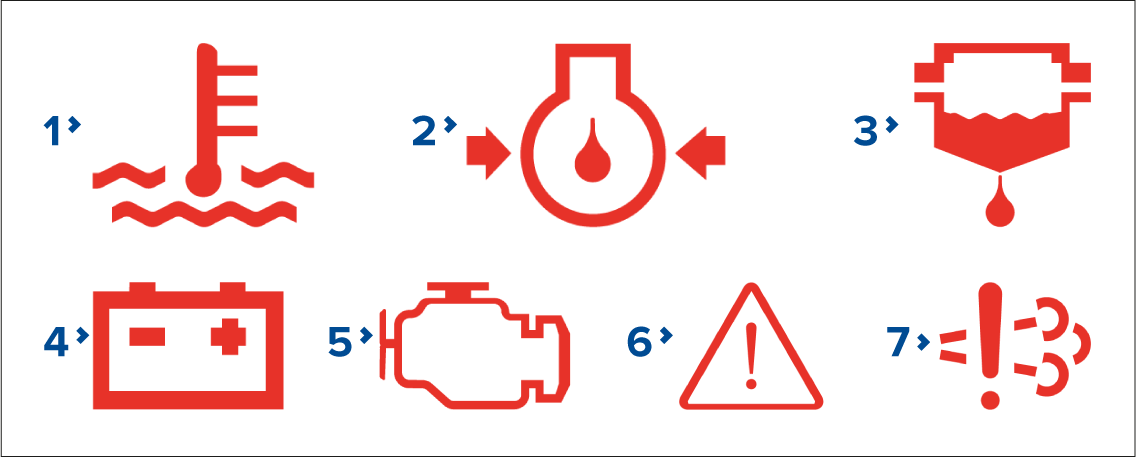

Yamaha app Warning indicator

1. Yamaha app WarningOverheatOverheat warning

2. Yamaha app WarningLow oil pressureLow oil pressure warning

3. Yamaha app WarningWater in fuelWater in fuel warning

4. Yamaha app WarningLow voltageLow voltage warning

5. Yamaha app WarningCheck engine warningCheck engine warning

6. Yamaha app WarningSteering systemSteering system warning

7. Yamaha app WarningCatalystCatalyst warning
