Navionics SonarChart Live

Navionics SonarChart™ Live feature allows you to record bathymetry data and create your own depth contours.. SonarChart™ Live requires compatible Navionics electronic cartography. SonarChart™ Live is available without an active subscription.

Note

  • The SonarChart™ Live feature is only available on the display which contains the physical chart card.

  • Ensure you have correctly configured your transducer depth settings.

Navionics SonarChart Live

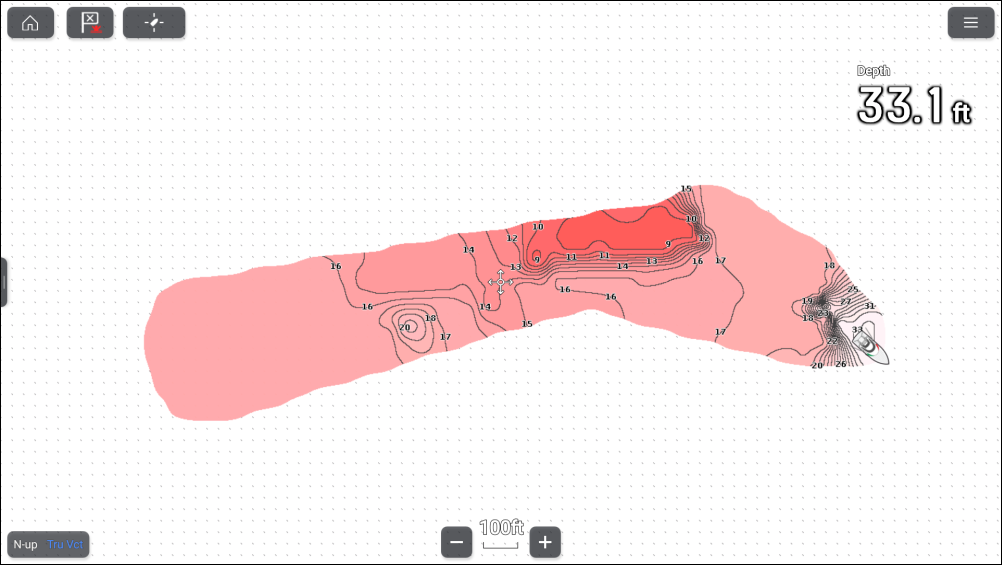

When using the SonarChart™ Live feature, new contour lines are drawn in realtime on the screen based on your transducer’s depth readings. Color shading is used to reflect contour depths. The bathymetry data is recorded to your Navionics chart card. Bathymetry data can be uploaded to the Navionics® website so that the contours can be shared.
