Using SmartDrift™ in the Chart app

Follow the steps below to use SmartDrift™ in the Chart app.

Chart appSmart DriftSmart drift

Note

The boat needs to be stopped and engines put in neutral.

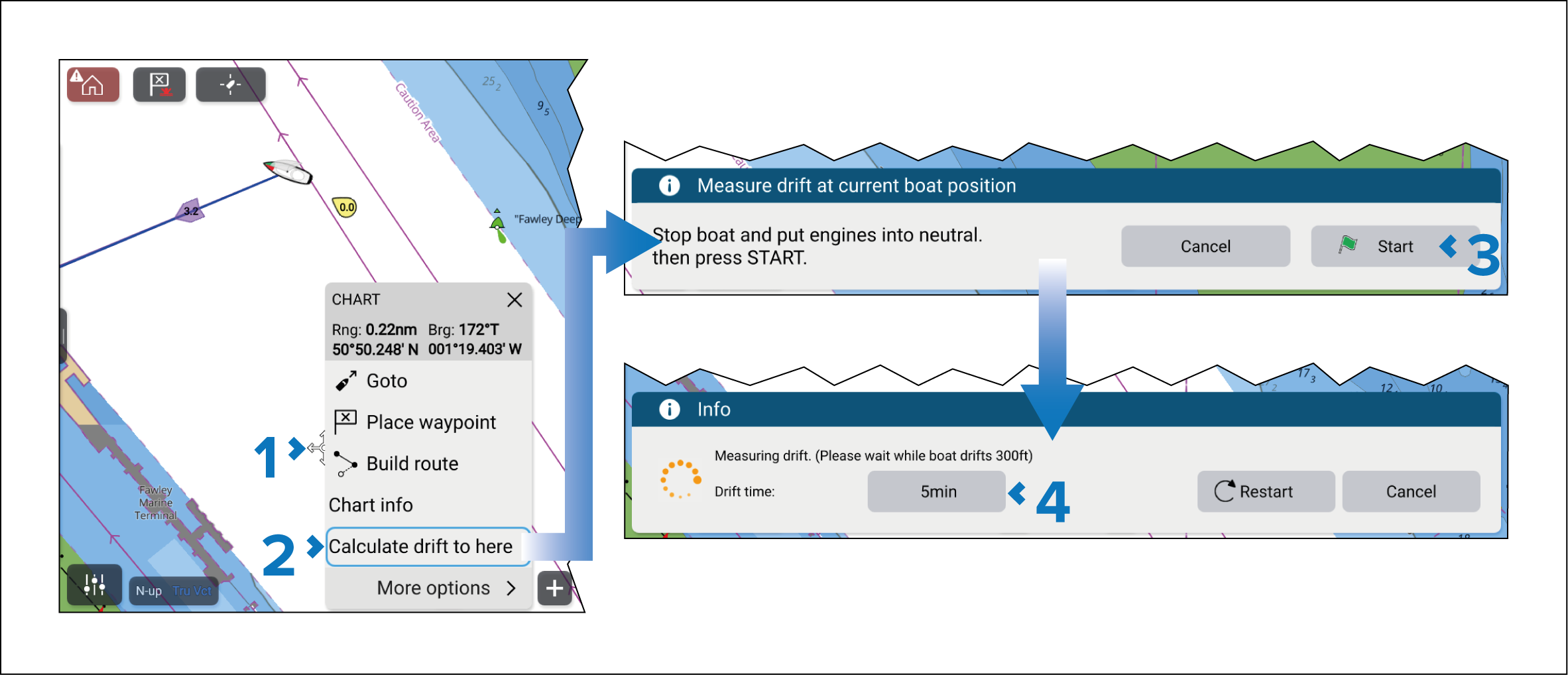

Select and hold on the point of interest or a waypoint in the Chart app.
The context menu is displayed.
Select Calculate drift to here.
Select Start.
Select the Drift time button and enter the time you require to reach the point of interest.
Drift time can also be adjusted after the calculation is complete.

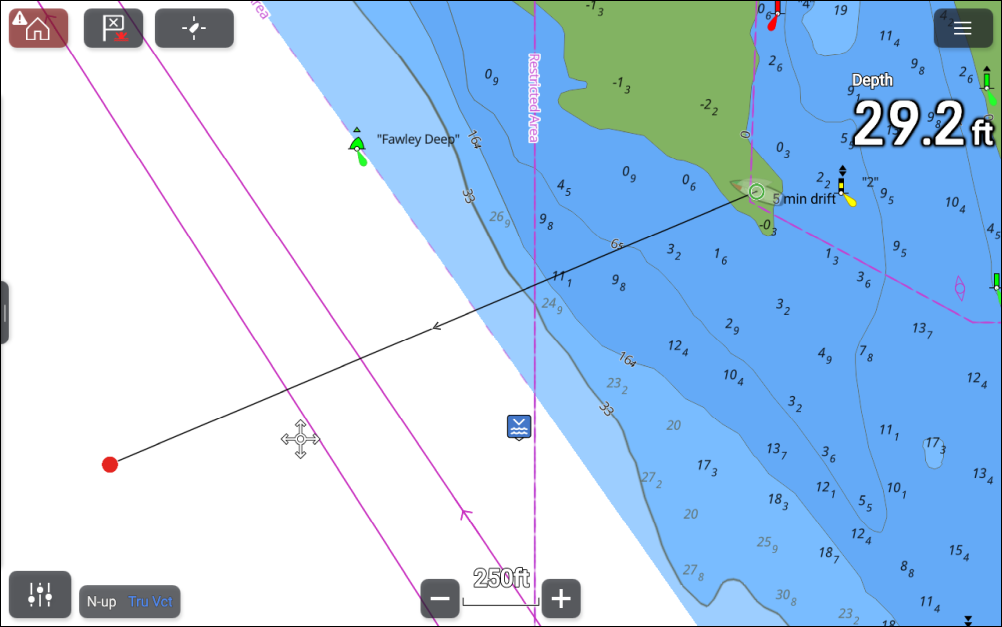

When the calculation is complete the SmartDrift™ vector will be shown in the Chart app.

You should now position and align your boat with the transparent boat icon. If wind and tide conditions remain unchanged, you should be over the stop point once the specified drift time has elapsed.
