Rudder bar indicator

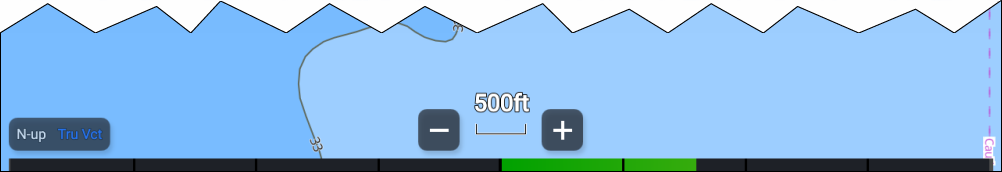

The rudder bar indicator is used to show a graphical representation of rudder angle that can be displayed at the bottom of the screen in the chart app. The rudder bar indicator is available in Navigate, Racing, Anchor and Fishing chart modes.

The rudder bar indicator requires rudder angle data to be transmitted to the display using NMEA 2000 PGN 127245.

Rudder bar indicatorChart appRudder bar indicatorThe rudder bar indicator is enabled and disabled from the Layers chart menu: Menu Layers Rudder bar.

The rudder bar is disabled by default and must be enabled individually for each chart mode and Chart app page instance.

The Wind shift bar and Rudder bar cannot be displayed at the same time. When one is enabled the other will be disabled.
