OneShot TOI decay times

TOIs designated as OneShot are temporary and are subject to a delay period before reverting to their original target states (i.e.: AIS target, Radar target, DSC target or Intel target).

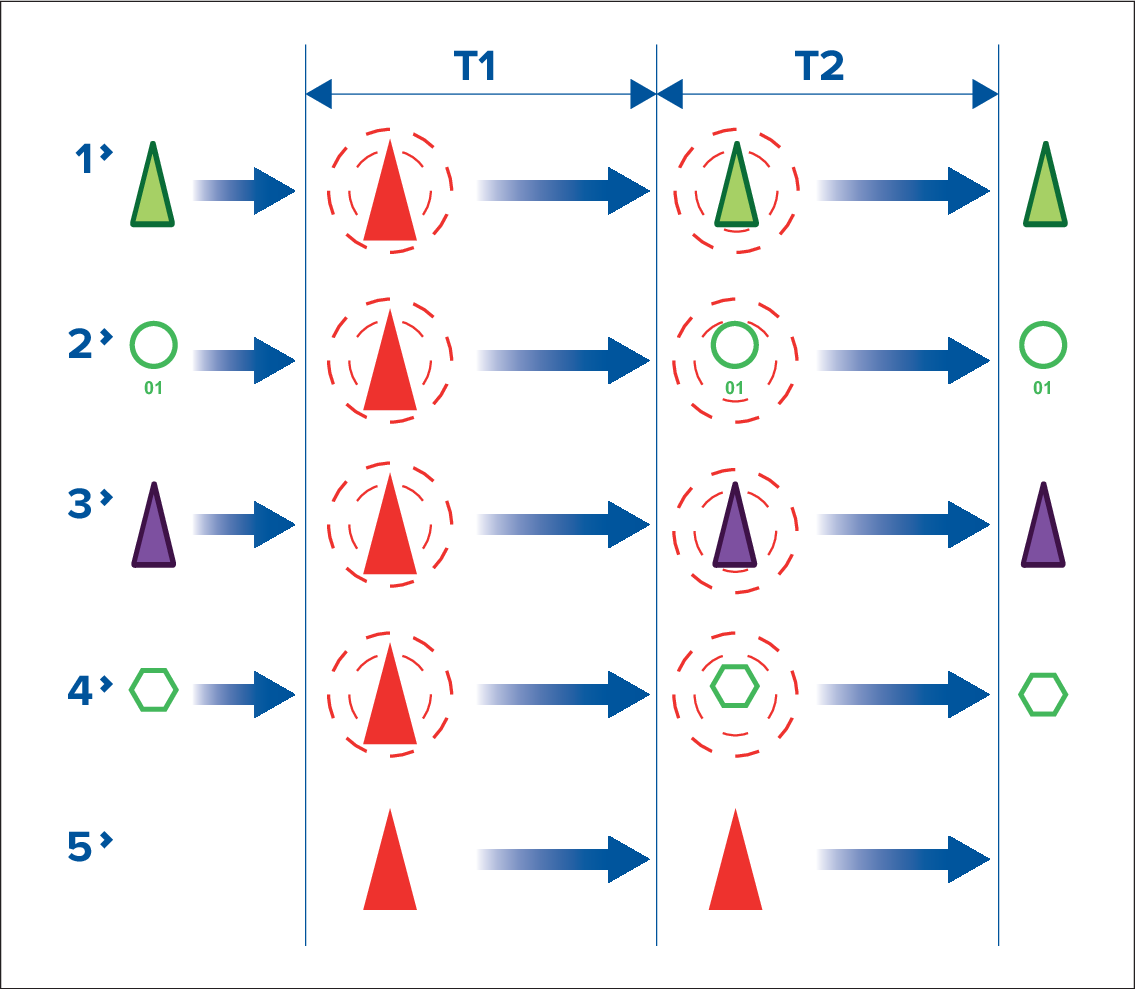

TOIOneShot decay

• T1 Initial delay — TOIOneShot Delay The OneShot TOI icon is used to represent OneShot TOIs until an initial delay period has expired.

• T2 Second delay — After the initial delay period has expired the TOI will revert to using its original target icon but maintain the Red dashed rings around the icon. After a second delay period expires the Red dashed circles are removed and the target reverts to using its original target icon. After the second delay period expires the target is no longer designated as a TOI.

1. AIS targets

2. Radar targets

3. Intel targets

4. DSC targets

5. Received TOI
