Minimum safe width

During the start up wizard you can set a minimum safe width for your vessel. The minimum safe width can also be added or changed at anytime from the Boat details setting menu: Homescreen > Settings > Boat details.

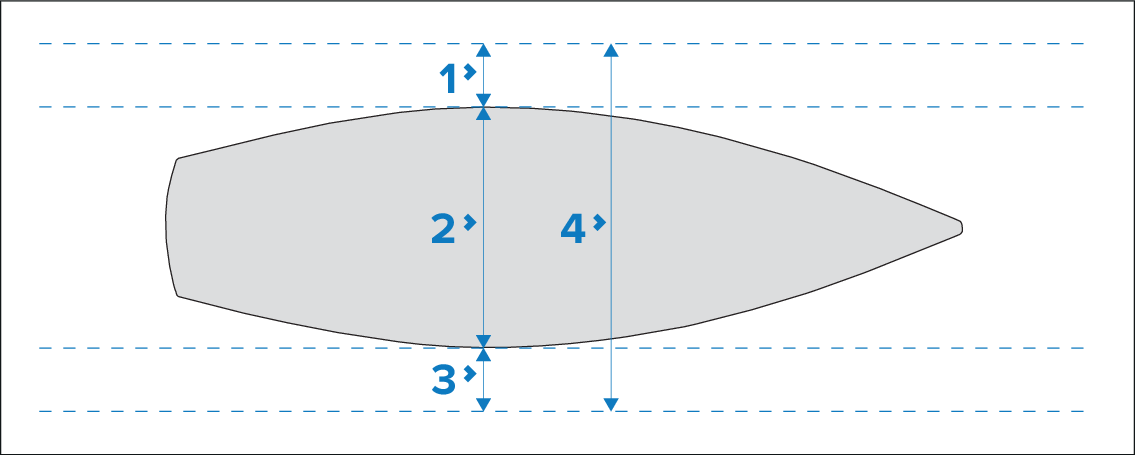

Minimum safe widthA suitable value for minimum safe width can be established by identifying your vessel’s maximum width and adding a safety margin to each side.

• Maximum width — Taken from the widest point.

• Safety margin — An adequate clearance to either side of the vessel.)

1. Port safety margin

2. Maximum vessel width (beam)

3. Starboard safety margin

4. Minimum safe width
