Minimum safe height

During the start up wizard you can set a minimum safe height for your vessel. The minimum safe height can also be added or changed at anytime from the Boat details setting menu: Homescreen > Settings > Boat details.

Minimum safe heightA suitable value for minimum safe height can be established by identifying your vessel’s maximum height from the waterline and adding a safety margin.

• Maximum vessel height — the distance from the waterline to the highest point of your vessel e.g.: top of the mast.

• Safety margin — an adequate clearance above your mast to allow for height variation.

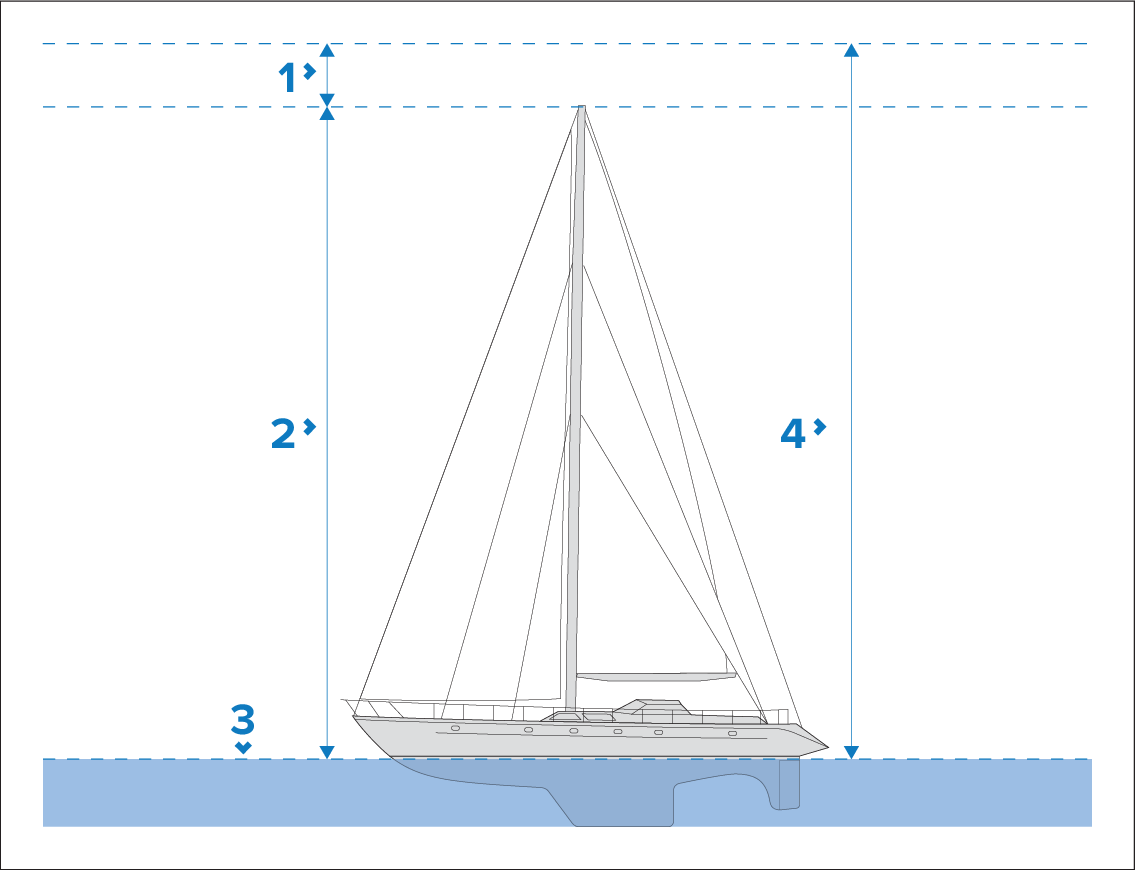

1. Safety margin

2. Maximum height from waterline

3. Waterline

4. Minimum safe height
