Engines

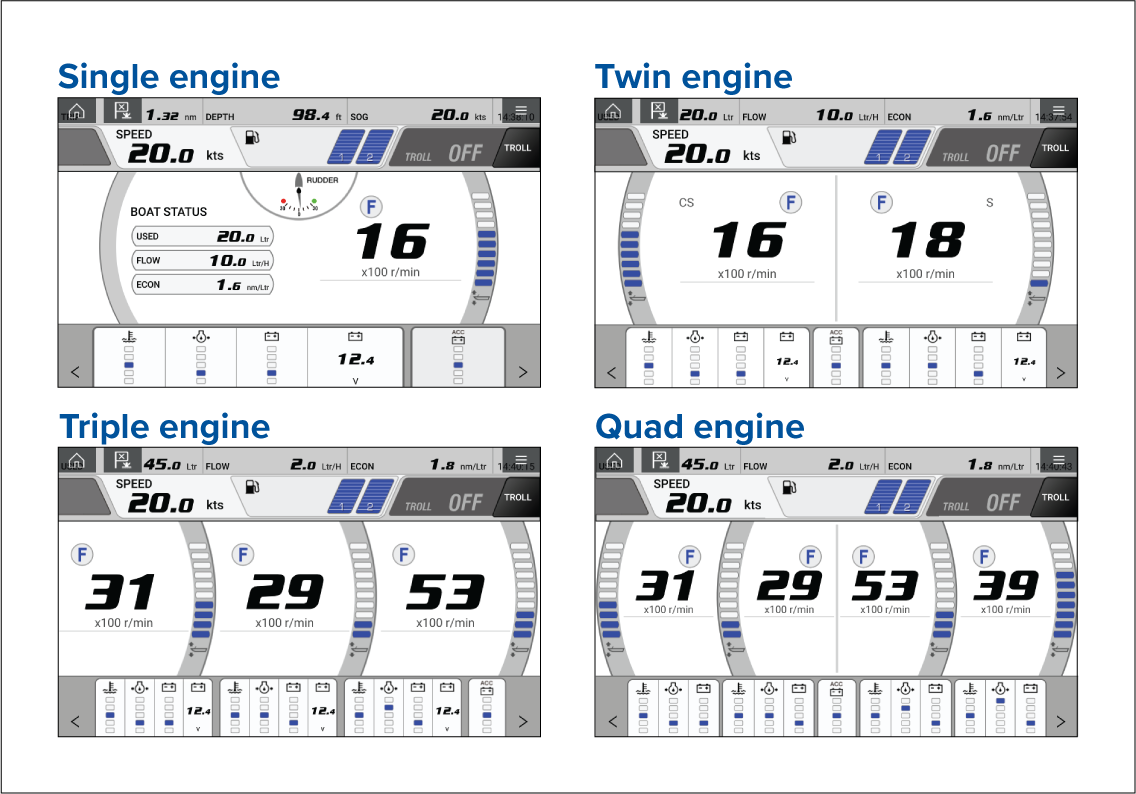

The number of Yamaha engines connected to your MFD’s network determines how the engine page is displayed.
The number of engines and their manufacturer can be set on the Boat details page.
If your vessel is setup using the old quad engine system (2 MFDs for Port and Starboard Engines), you can select which engines are displayed per MFD by selecting Configure Yamaha Quad display and choosing Port side or Starboard side.

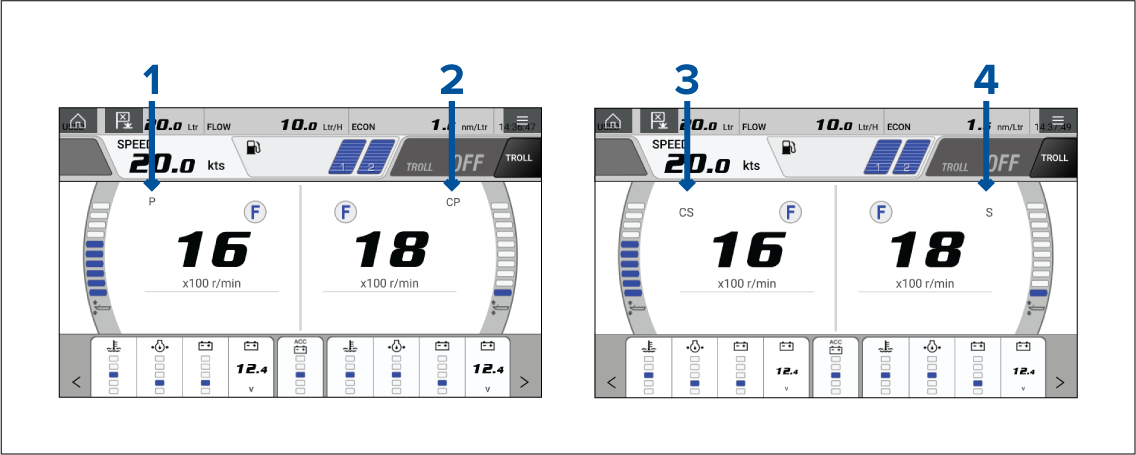

The engine page will update to reflect which engines your MFD is networked to, with Port and Central Port symbols or Starboard and Central Starboard symbols.
Port engine
Central Port engine
Central Starboard engine
Starboard engine
