C-Monster gateway connection

The C-Monster gateway must be connected to the same SeaTalk NG / NMEA 2000 network as the display.

Power-poleC-Monster gatewayConnection via the gateway enables integration of compatible trolling motors and anchors.

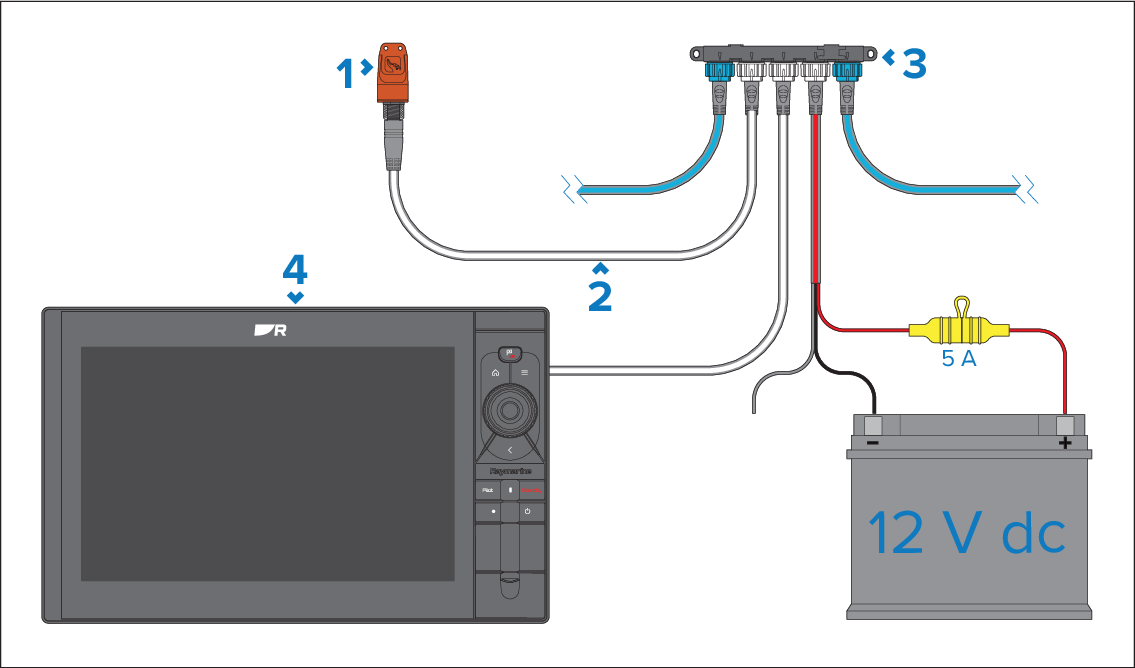

Figure 1. C-Monster SeaTalk NG connection diagram

  1. Power-Pole® C-Monster gateway.

  2. SeaTalk NG to DeviceNet adaptor cable.

  3. SeaTalk NG network.

  4. MFD / chartplotter.

Note

The diagram depicts connection using a Raymarine SeaTalk NG network. A DeviceNet network could be used in a similar way.
