LightHouse Charts Buildings

Land-based buildings can be viewed in 2D or 3D in LightHouse Charts Gen 2.

Prerequisites:

  • Axiom and Axiom+ chartplotters must be running LightHouse 4 v4.10.33, or later.

  • All other Axiom-Series and Axiom 2-Series chartplotters must be running LightHouse 4 v4.9.330, or later.

  • The display of land-based buildings is only available on the latest versions of LightHouse Charts Gen 2.

Note

Buildings are only available in the areas covered by your Streets & Points of interest selection in the LightHouse Charts Chart manager and is a premium feature.

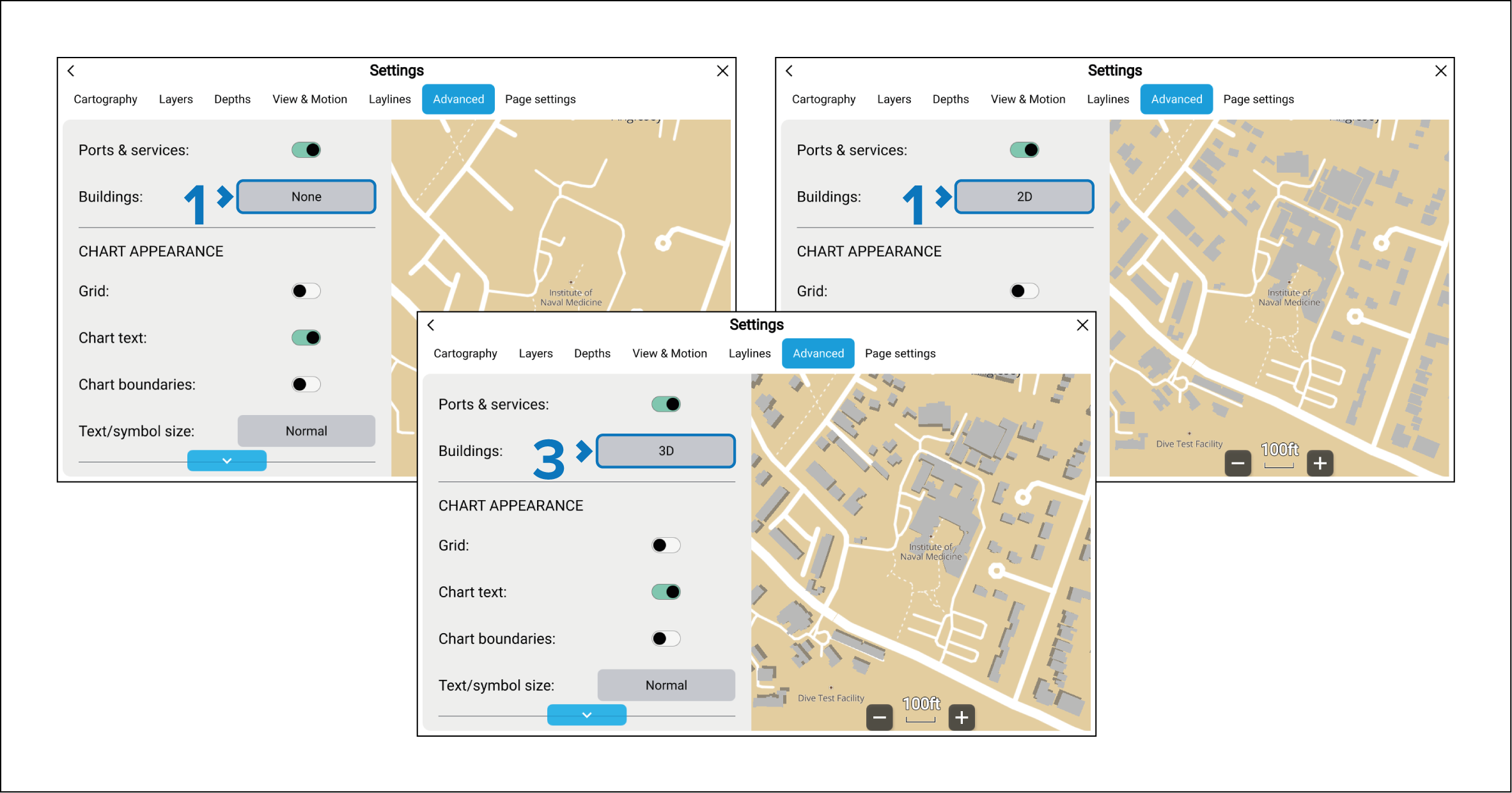

LightHouse chartsBuildingsThe Buildings setting can be enabled from the Advanced settings menu: Menu > Settings > Advanced > Cartographic objects > Buildings.

The available options are:

  1. None — land-based buildings will not be displayed on charts.

  2. 2D — land-based buildings will be displayed in 2D on charts.

  3. 3D — land-based buildings will be displayed in 3D on charts.
