Anchor control overview

Integrated shallow anchors can be controlled using the dedicated Power-Pole® sidebar. The sidebar provides controls which enable you to raise and lower anchor(s).

Sidebar Power-polePower-poleThe Power-Pole® sidebar is available on all networked displays when a supported shallow anchor is detected on the network.

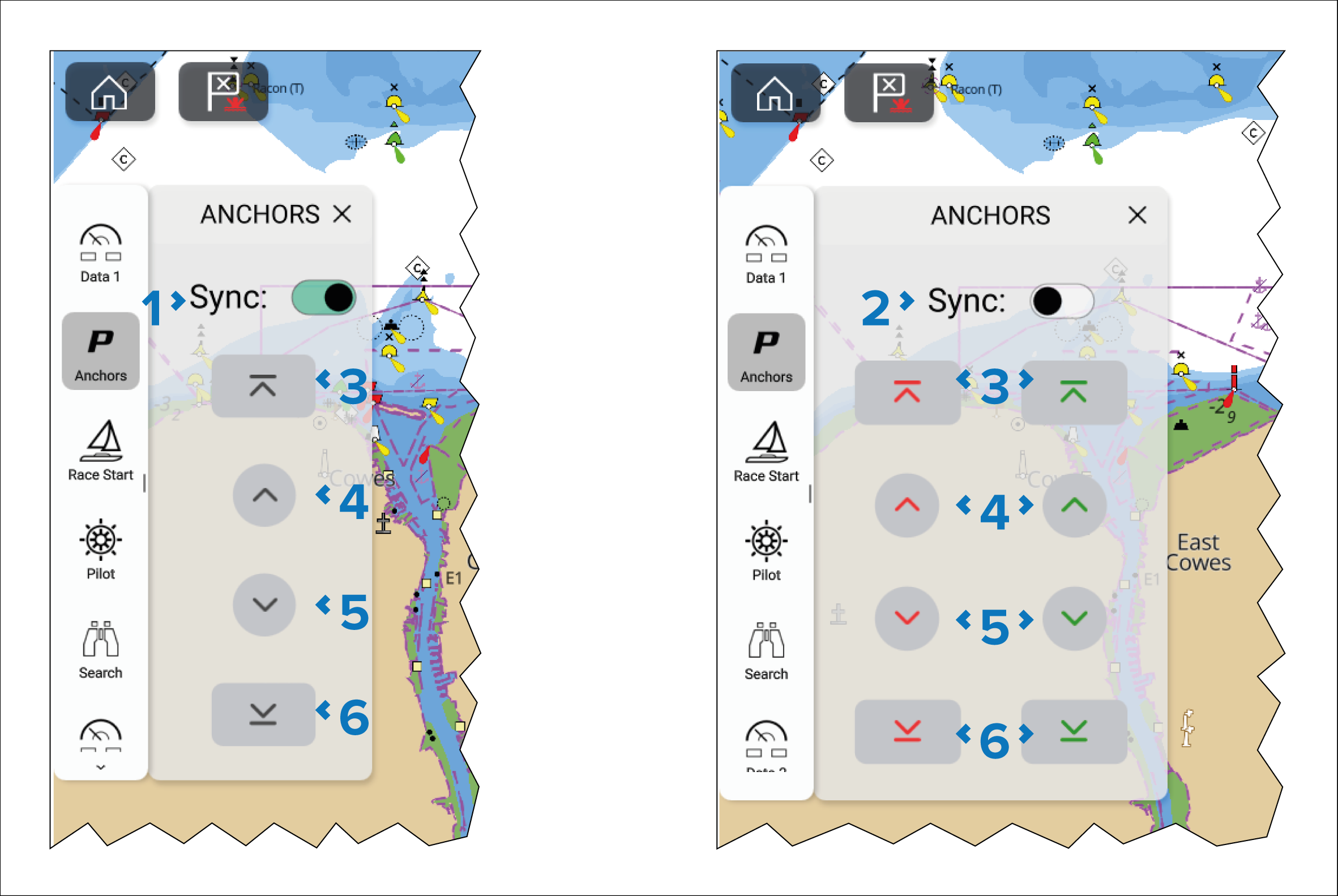

The sidebar includes the following anchor controls:

1. Sync — With Sync on, the sidebar buttons will control all anchors.

2. Sync — With Sync off, the sidebar will provide buttons for each anchor.

3. Fully raise/stow anchor(s)

4. Raise anchor(s) in increments.

5. Lower anchor(s) in increments.

6. Fully lower/deploy anchor(s).

In systems with 2 anchors, by default the anchor controls will be synchronized.
