Waypoint arrival

As the vessel arrives at the target waypoint’s arrival circle the MFD will select the next target waypoint in the route and transmit this to the autopilot. A Waypoint advance warning is displayed that will identify the bearing to the next waypoint and the direction the vessel will turn to acquire the new track.

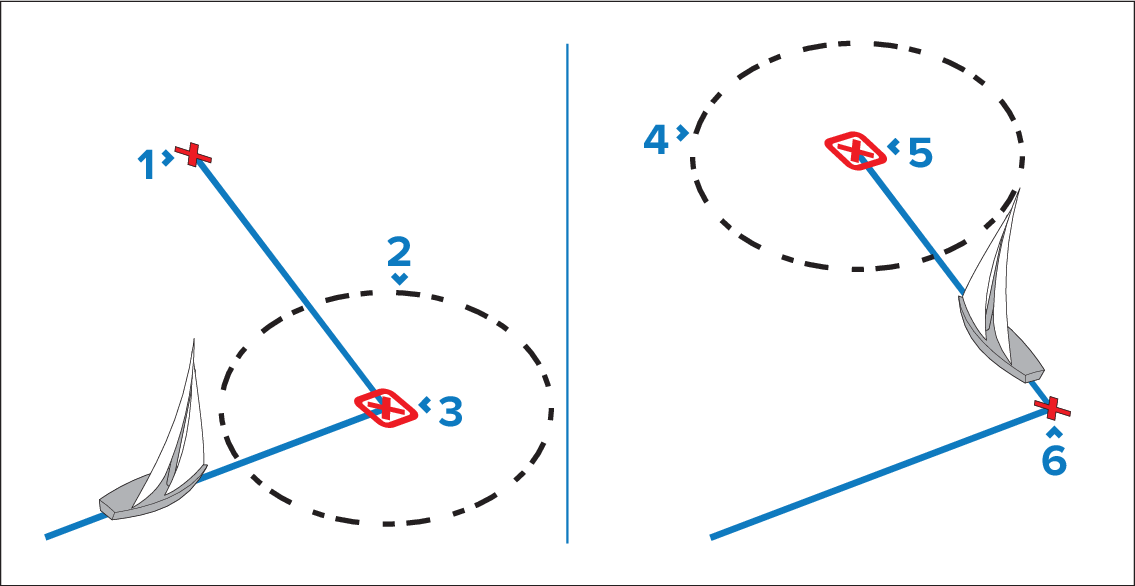

Waypoint arrivalWaypoint advance

  1. Next waypoint

  2. Waypoint arrival circle

  3. Target waypoint

  4. Next waypoint arrival circle

  5. Next target waypoint

  6. Previous waypoint
