Arriving at a waypoint

As you approach each waypoint, an alarm sounds and the waypoint arrival notification is displayed. The notification includes options so you can choose how to proceed.
Waypoint arrivalWhen the waypoint arrival alarm is triggered:
  1. Check that it is safe to turn onto the new heading.
  2. If it is NOT safe or you do not want to advance to the next waypoint you can:
    1. Select Cancel or Auto to remain on the same heading, or
    2. Select Standby to return to manual steering.
  3. If it is safe select TRACK to accept the new heading and proceed to the next waypoint.

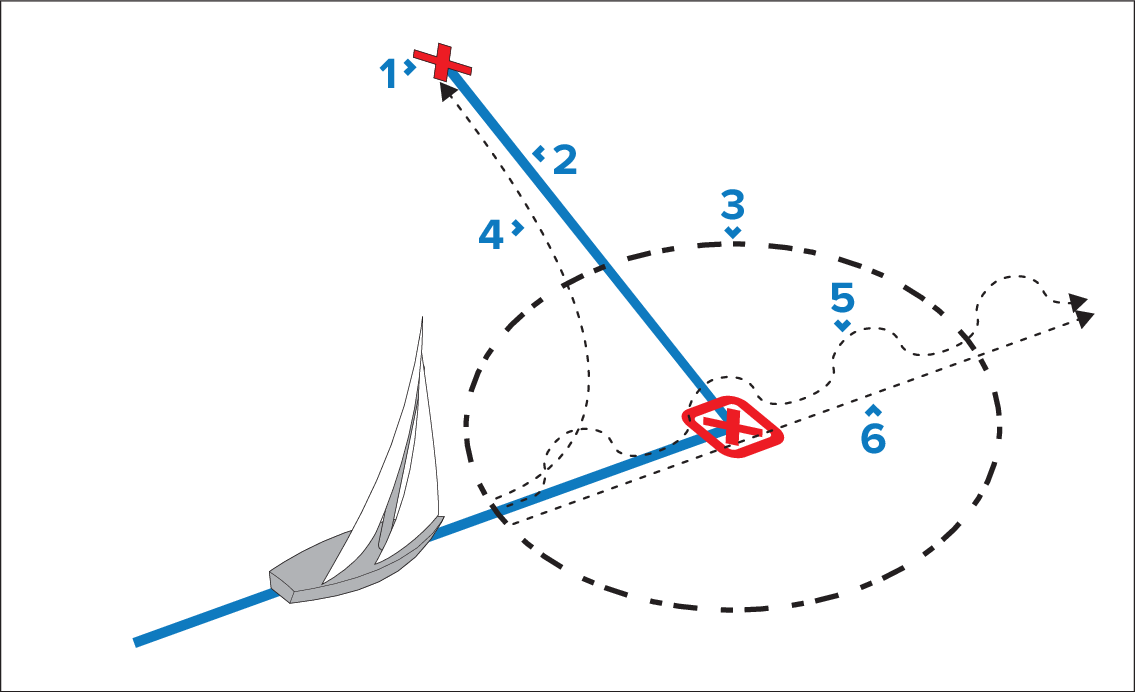

  1. Next waypoint.

  2. Track line.

  3. Waypoint arrival circle.

  4. Track — Track to next waypoint.

  5. Standby — Manual helm control.

  6. Auto or Cancel — Maintain current locked heading.

Note

If you do not press Track to accept the Waypoint advance, the autopilot will maintain the current heading and continue sounding the warning.
