Detecting fuel messages

The Fuel manager generates fuel estimates based on NMEA 2000 PGNs: Fuel Used (Trip) (PGN 127497) or Fuel Flow Rate (PGN 127489).

Fuel managerDetecting fuel messagesPGNs

You can see which of these messages are available on your system from the Fuel Manager’s Set-up menu: Menu > Fuel manager > Set-up.

  1. Start your vessel’s engines.
  2. Select Detect fuel messages.

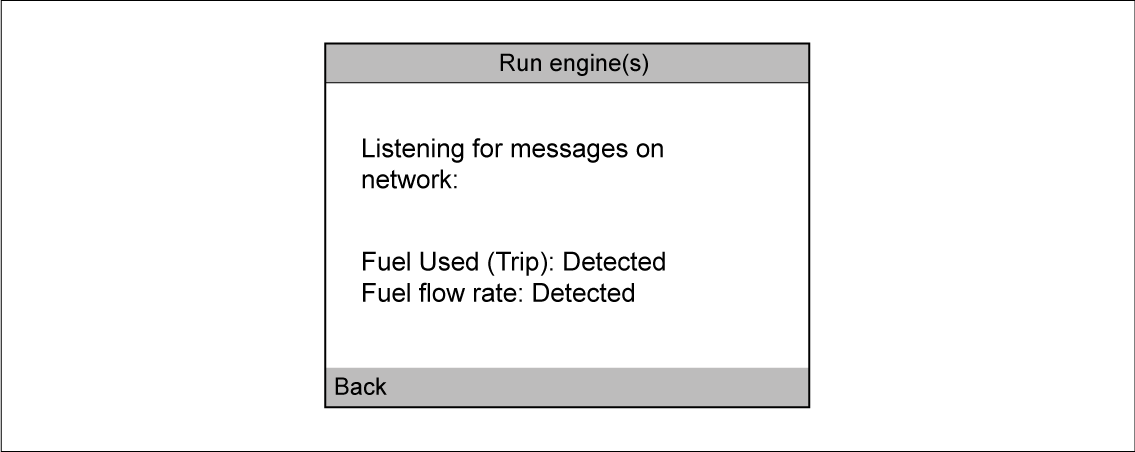

    The screen will update to identify which messages are detected.

    Note

    If no message is detected after a period of 15 seconds, the “Not found” status message is displayed.

  3. Select Back.
