Shared Brightness

Shared brightness enables simultaneous brightness adjustment of all products that are part of the same group. For example, these groups could be used to reflect the physical location of products on your vessel (e.g.: helm and flybridge).

Shared BrightnessBrightnessSharedThe following products are compatible with shared brightness:

  • Alpha-Series Performance Displays

  • LightHouse 4 MFDs.

  • LightHouse 3 MFDs using software v3.4.102 or later.

  • SeaTalk NG Instrument displays and Pilot controllers.

  • SeaTalk NG VHF DSC Radios.

  • RMK-9 and RMK-10 remote keypads.

Shared brightnessBrightnessAny adjustments to the shared brightness level will be applied to all products assigned to the same group.

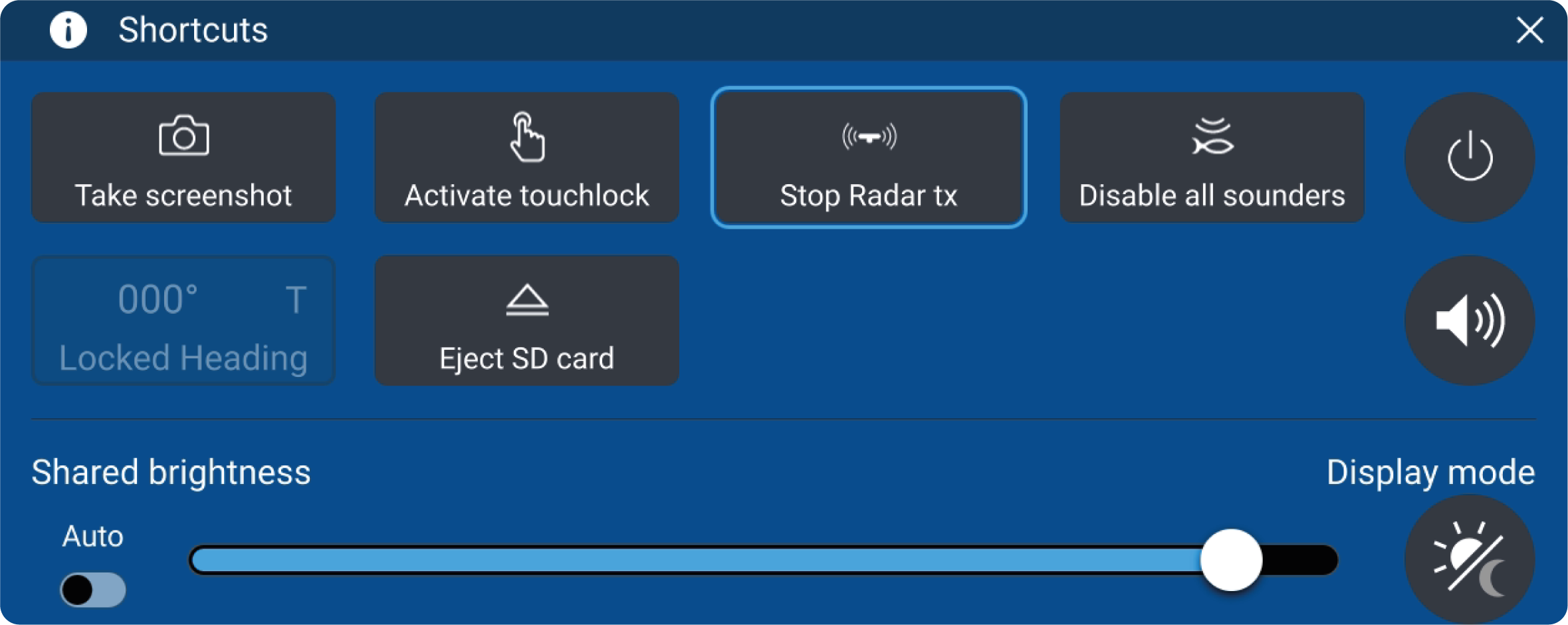

LightHouse 4 / LightHouse 3

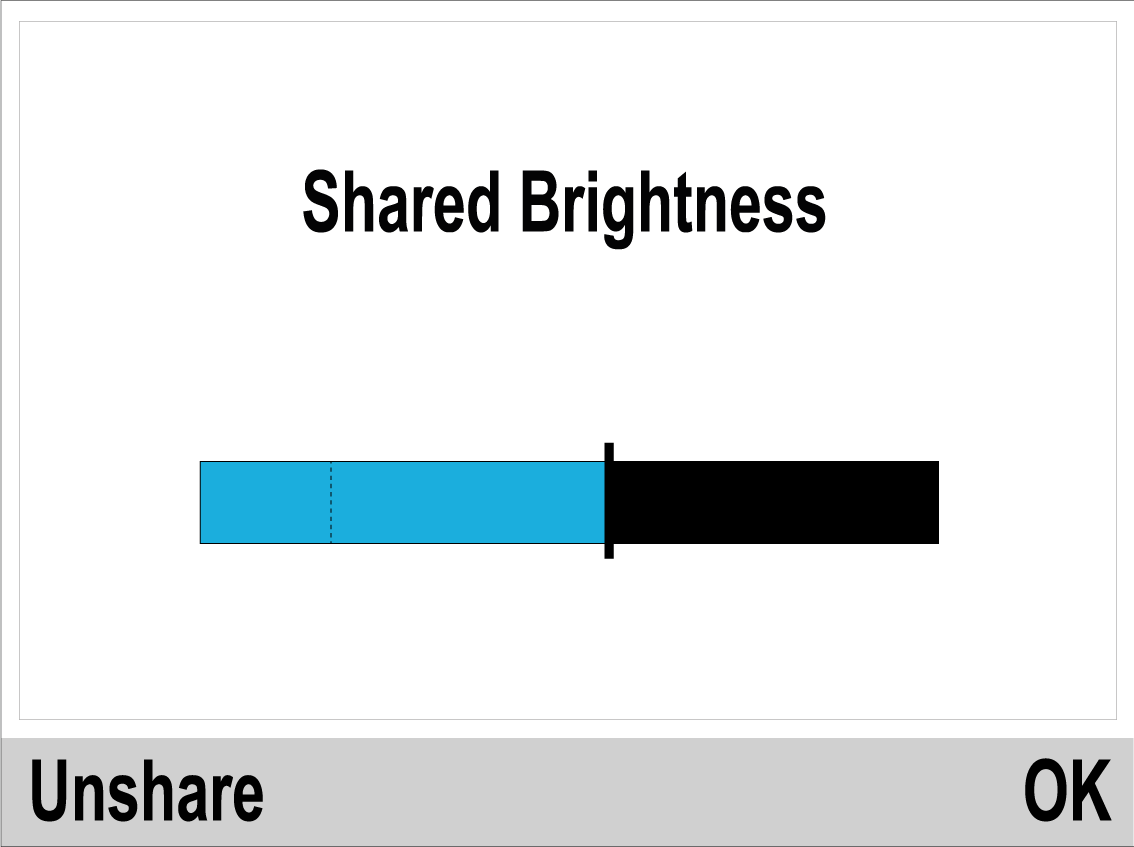

Alpha-Series Performance Displays

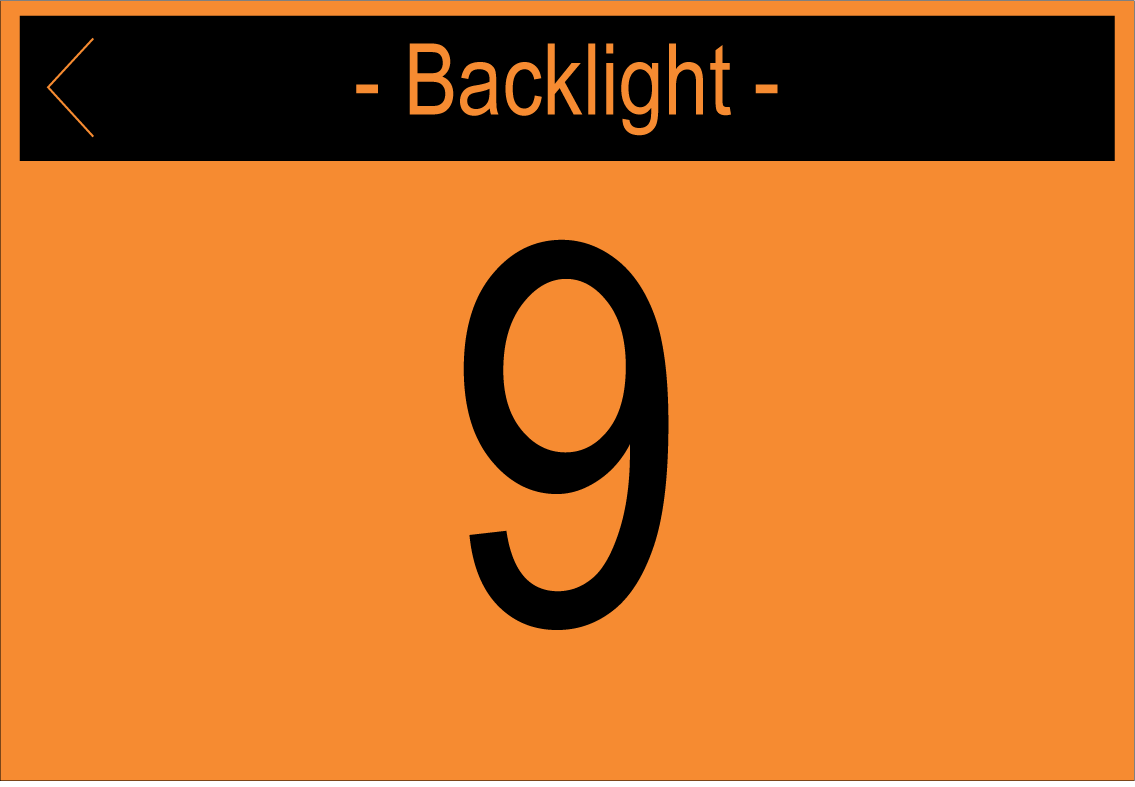

VHF DSC Radio

Instrument display / Pilot controller

Multiple brightness groups can be configured. For example, these groups could be used to reflect the physical location of products on your vessel e.g.: helm and flybridge.

Shared brightness requires:

  • All products to be compatible with the shared brightness function (see list of compatible products above).

  • The Shared brightness setting set to On for all products in the brightness group.

  • Products to be assigned to network groups.

  • All the products in each group to be synchronized.

Note

If any display in the system has automatic brightness enabled, the brightness of all displays in the same group will be automatically adjusted and synchronized, whenever a brightness adjustment is made on any of the displays in the group.
