Completing the set up wizard

If the display is being switched on for the first time or after a factory reset the set up wizard will be launched.

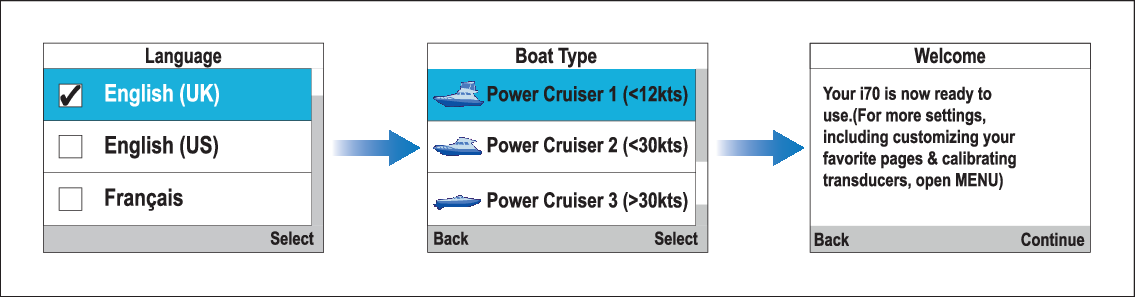

Set-up wizardThe set up wizard guides you through the following basic configuration settings:

  1. Language selectionLanguage selection

  2. Boat type selectionBoat type selection

  3. Welcome message

Note

The set up wizard may be skipped if these settings have already been configured for another display in the system.

  1. Select the user interface language that you want to use.
  2. Select the boat type that closely matches your vessel’s hull type.
  3. Select Continue.
    The large pilot view page is displayed.
