5-in-1 antenna dimensions

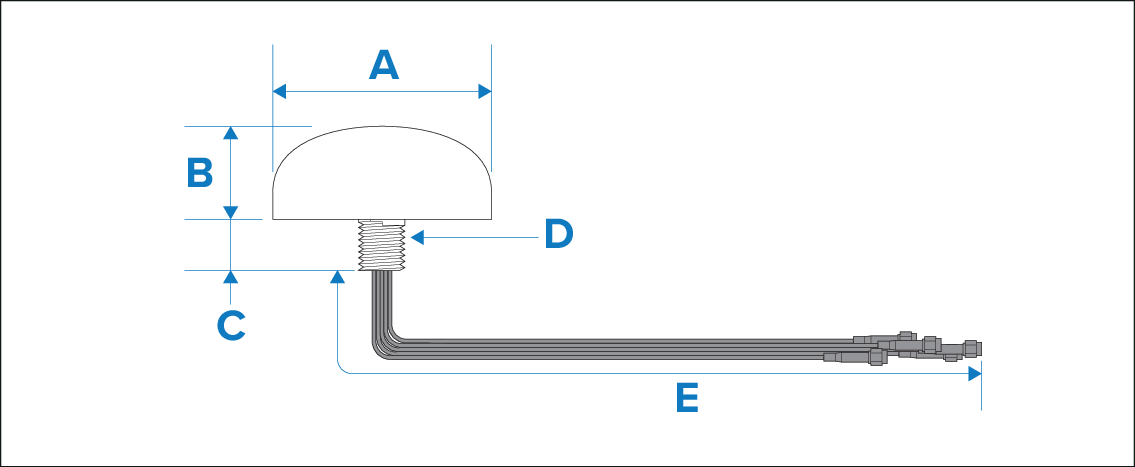

Dimensions5-in-1 antenna
| DimensionsSpecificationDimensions | Description |
|---|---|
A |
Ø 102.90 mm (4.05 in) |
B |
43.50 mm (1.71 in) |
C |
24.00 mm (0.94 in) |
D |
1” -14 UNS thread |
E |
5 m (16.4 ft) |
The 5-in-1 antenna was modified in May 2023 to increase the thread length and thread pitch as follows:
Thread length (dimension C) was increased from 16.00 mm (0.63 in) to 24.00 mm (0.94 in).
Thread pitch (dimension D) was changed from 7/8”-9 UNC to 1”-14 UNS
2 x M4 inserts were added to the antenna base, which allows surface mounting using M4 fixings such as thumb nuts and threaded studs (not supplied).
Before installation, please check the thread length of your antenna, as it may impact your installation.
When sourcing your own fixings, to help prevent corrosion, it is recommended that the fixings should be A4 stainless steel or brass.
