SeaTalkng connection

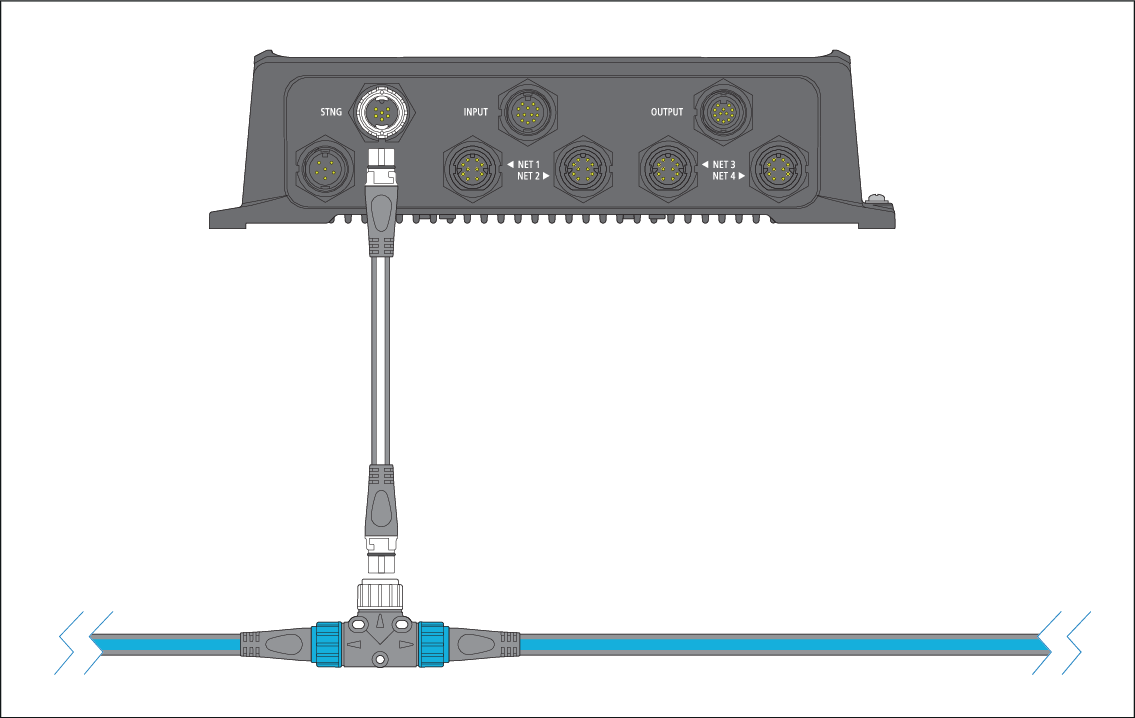

The router should be connected to a SeaTalkng® backbone using the supplied SeaTalkng® spur cable. Connection to a SeaTalkng® backbone enables compatible data to be received and transmitted by the router. The SeaTalkng® connection also enables communications with Raymarine Axiom™ MFDs and Raymarine YachtSense™ Digital Control Systems.

ConnectionsSeaTalkng

Note

The SeaTalkng® backbone requires a dedicated 12 V dc power supply and is not supplied power from the router.
