Product overview

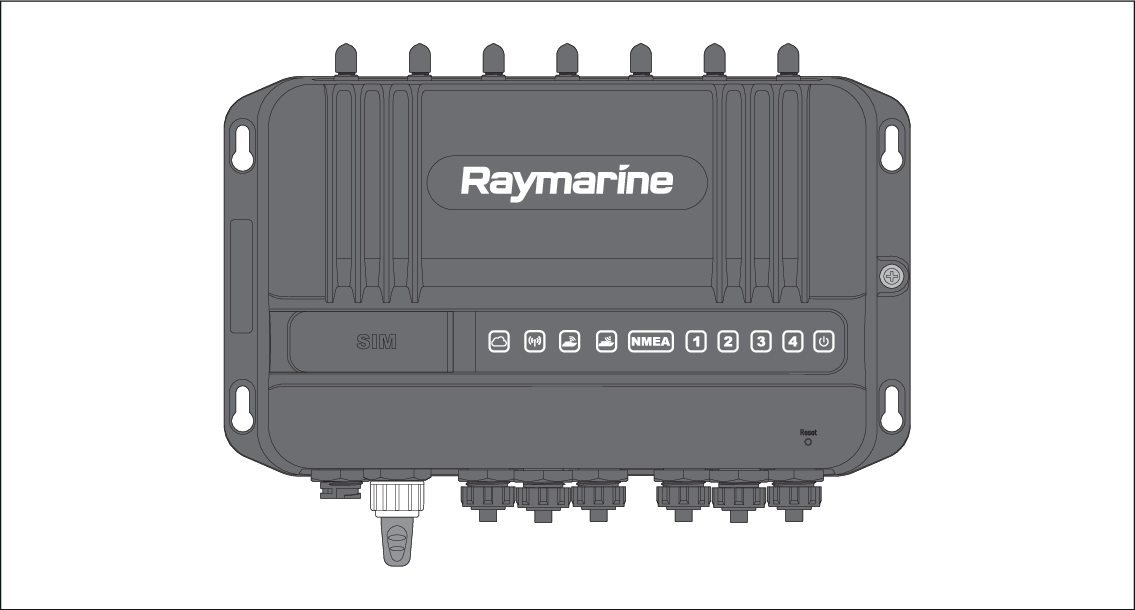

The YachtSense™ Link router (part number E70640) is a 4G smart router that provides an internet connection to connected devices. The router can be connected to the internet using Cellular, external Wi-Fi and a wired Wide Area Network (WAN) connection. The internet connection is routed to all devices connected to the router’s Wi-Fi or Ethernet connections. The YachtSense™ Link router is part of Raymarine’s YachtSense™ ecosystem and enables onboard and remote monitoring and control of compatible onboard systems via the Raymarine app.

ProductFeaturesThe YachtSense™ Link router includes the following features:

  • Dual Micro-SIM card slots.

  • Cellular antenna connections.

  • Diversity antenna connections.

  • Dual Wi-Fi network (DOCK WLAN) for off boat wireless connections.

  • Dual Wi-Fi network (BOAT Wi-Fi) for onboard wireless connections.

  • Configurable WAN port.

  • Built in GNSS (GPS) receiver (GLONASS and Beidou compatible).

  • 4 x digital input channels, for device monitoring.

  • 4 x digital output channels (rated at 200 mA), for device control.

  • 4 x RayNet network ports.

  • SeaTalkng® / NMEA 2000 connection.

  • Web browser user interface for configuration.

  • NAT (Network Address Translation) firewall.

  • Compatible with Raymarine displays running LightHouse™ 4, version 4.0 or later.

  • Low power mode.

  • Supports remote wake via the Raymarine app over a cellular network.

  • Supports wake via alert notification or input channel connection.
