Parts supplied

The following parts are supplied in the box.

Parts supplied

Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.

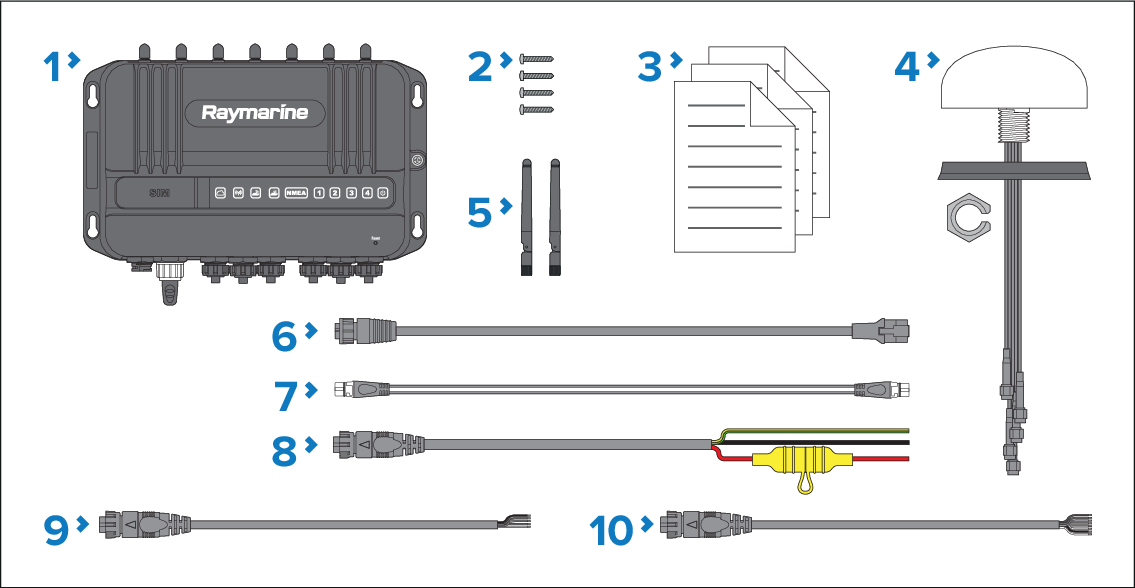

  1. YachtSense™ Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted).

  2. 4 x mounting fixings (PA 4 x 25 mm self tapping screws).

  3. Documentation pack

  4. 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket.

  5. 2 x Dipole antenna (BOAT Wi-Fi).

  6. RayNet to RJ45 cable, 1 m (3.3 ft).

  7. SeaTalkng® spur cable, 1 m (3.3 ft).

  8. Power cable, 1.5 m (4.9 ft), with 8 A fitted fuse.

  9. Input cable (5-wire), 0.5 m (1.64 ft).

  10. Output cable (8-wire), 0.5 m (1.64 ft).
