Display mirroring (view and control)

The Display mirroring area is located on the app’s Control tab. Select the icon for the display you want to mirror on your mobile device.

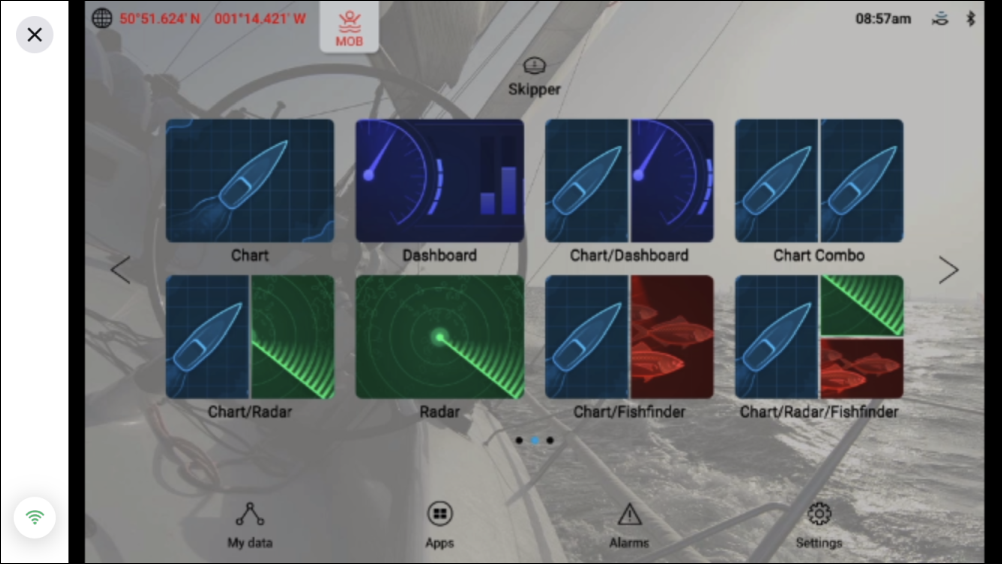

The displays screen will appear and you can view and control the display using the app.

If the icon for the display you want is not present check:

• Your mobile device is either, directly connected to the display’s Wi-Fior that it is connected to a YachtSense Link router’s Wi-Fi access point, which is on the same wired network as the display.

• Your display is powered on.

• Your app is connected to the correct boat system for the display.
