Inserting SIM cards

YachtSense™ Link has dual SIM card slots which accept Micro SIM cards (Nano SIMs can be used with a Nano to Micro SIM adaptor).

Important

  • The SIM card will require activation in store or online as it cannot be activated using the router. For guidance refer to SIM card activation

  • Inserting SIM cards is a delicate procedure do NOT use tools or sharp objects as this may damage the SIM tray or contacts.

  • Ensure that the steps are followed in sequence.

Note

  • A SIM card is not supplied with the YachtSense™ Link and will need to be purchased separately.

  • If only using a single SIM card it should be inserted into SIM slot 1.

  • Once SIM cards are inserted the router must be configured to allow use of mobile data. Refer to: Configuring mobile data

Nano SIMMicro SIMSIM cardInserting

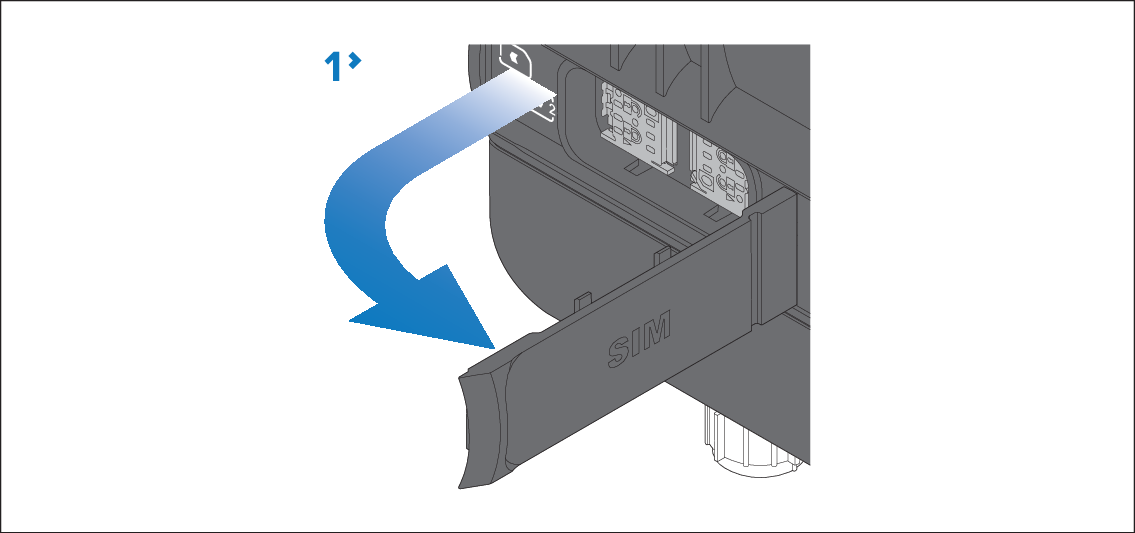

  1. SIM carddoorOpen the SIM card cover.

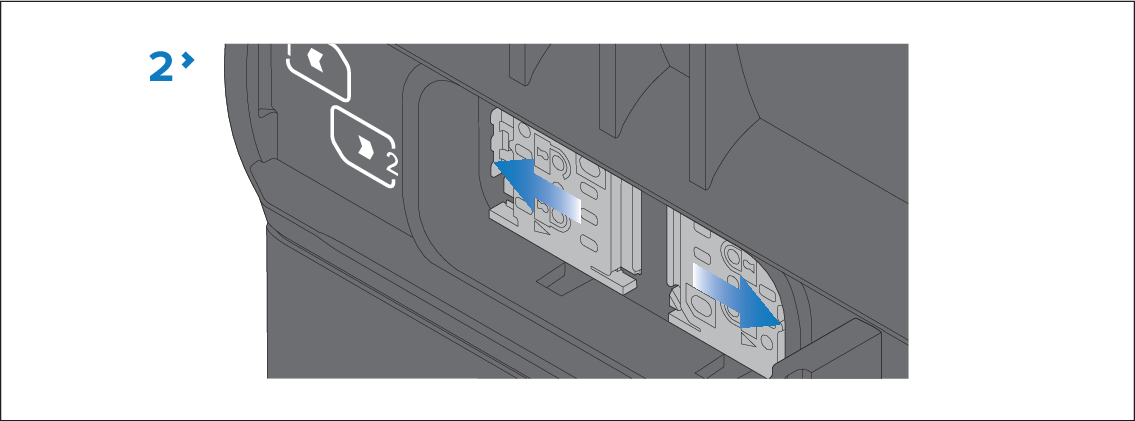

  2. Use your fingernail to slide the front edge of the SIM tray(s) into the unlocked position.

    SIM 1 slides to the left and SIM 2 slides to the right.

    Important

    Do NOT use tools or sharp objects in the holes of the SIM tray to open.

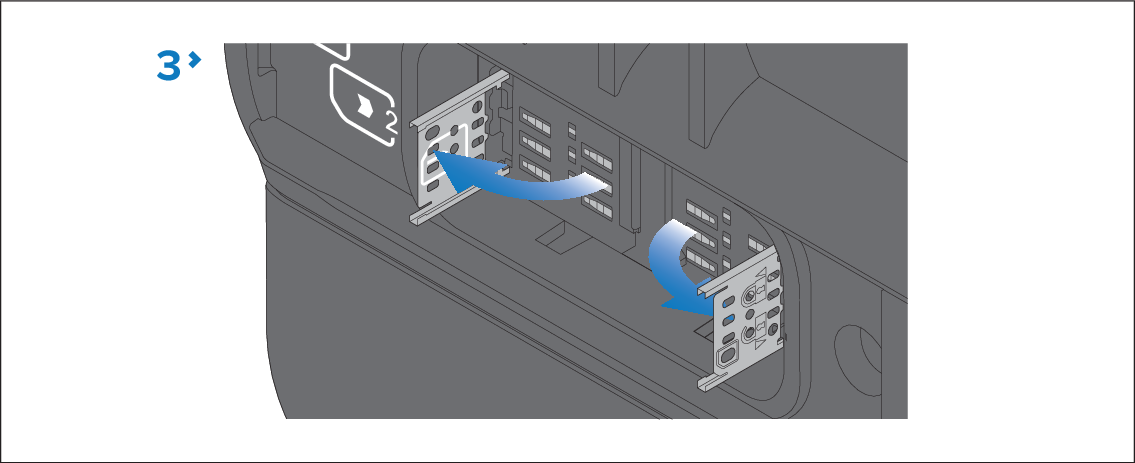

  3. Gently open the SIM trays in the direction shown.
    SIM 1 is hinged on the left and SIM 2 is hinged on the right.

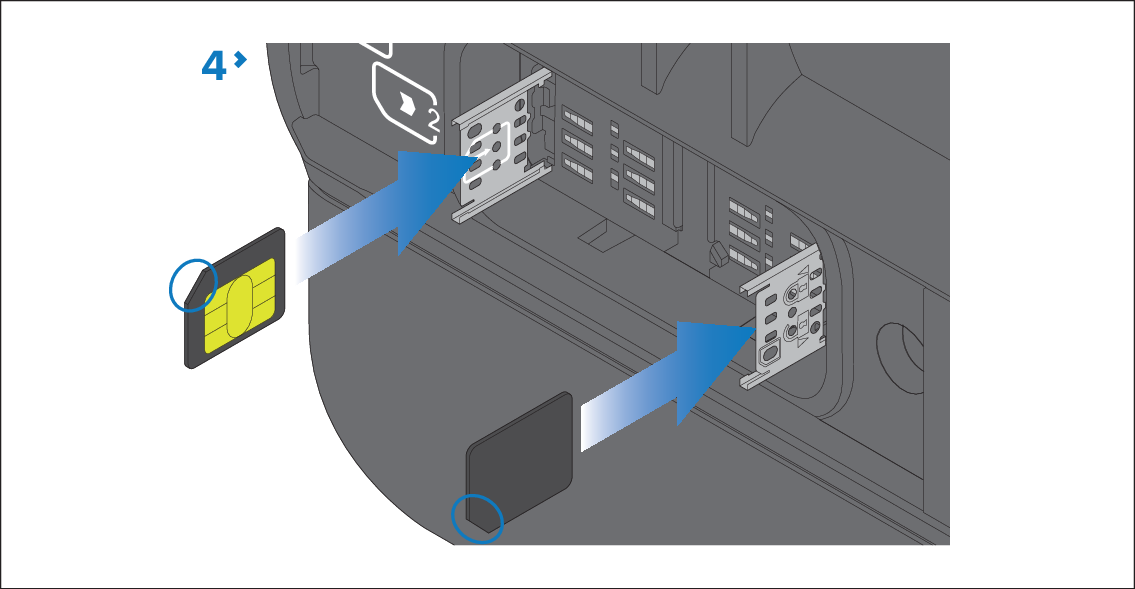

  4. Ensuring correct orientation, insert your Micro SIM card(s) into the trays.
  5. Gently close the SIM trays in the direction shown.

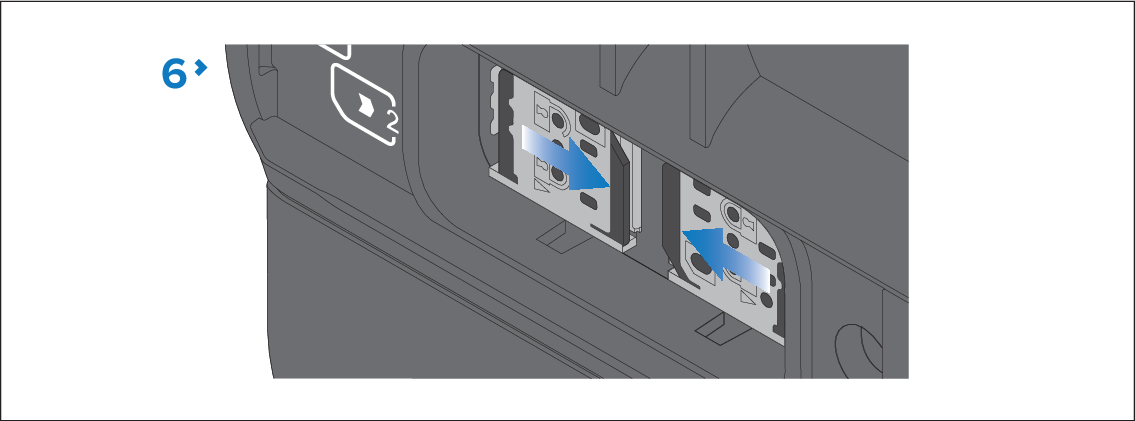

  6. Use your fingernail to slide the SIM trays into the locked position.

    SIM 1 slides to the right and SIM 2 slides to the left.

    Important

    Do NOT use tools or sharp objects in the holes of the SIM tray to close.

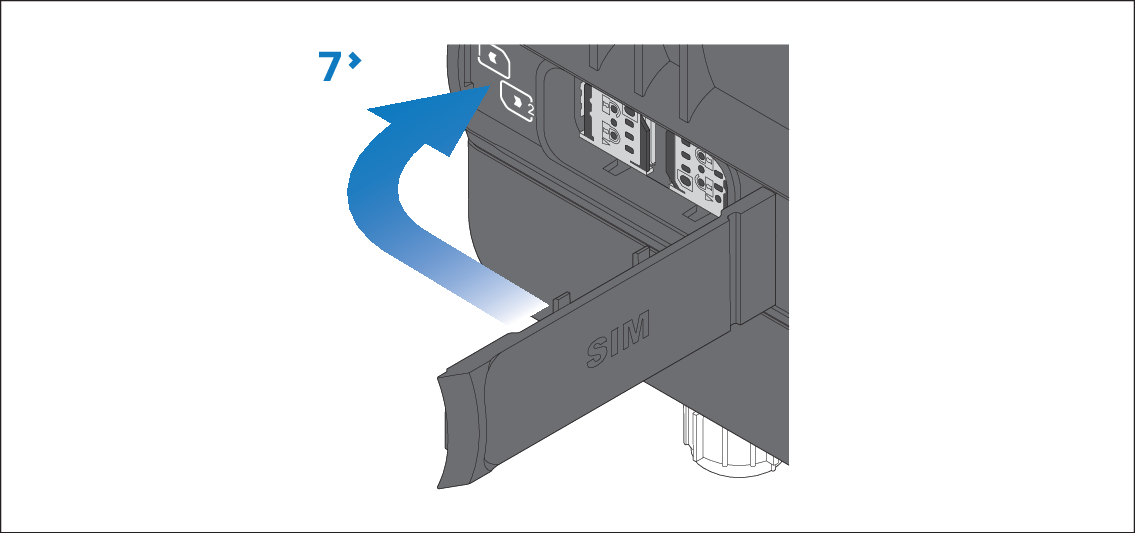

  7. Close the SIM card cover, ensuring that it is correctly seated all the way around the edge.
