Configuring output channels

The router’s output channels (channels 5 to 8) can be configured from the Channels configuration page: Inputs & Outputs > Channels configuration.

Output channels Configuring

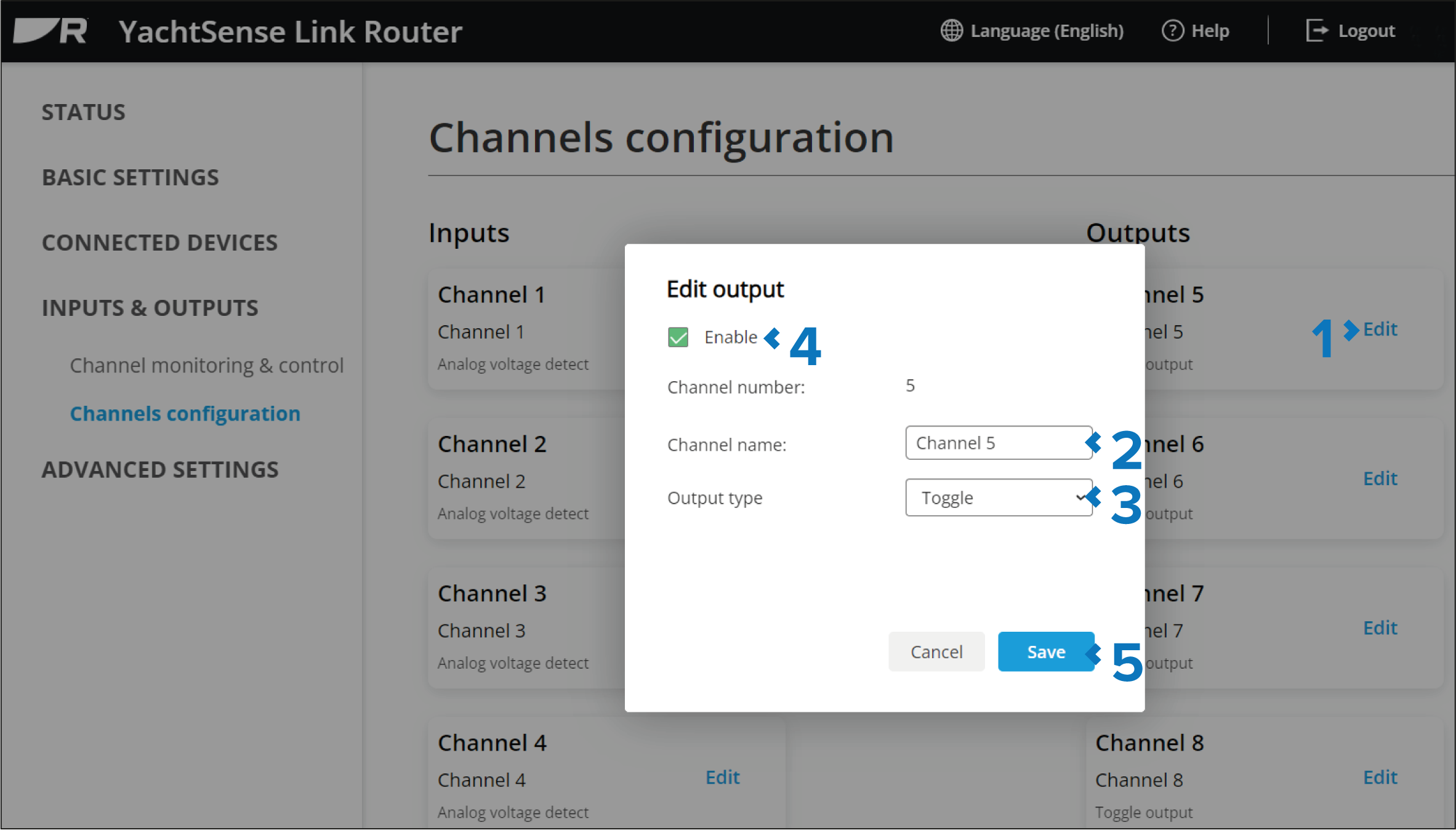

Select Edit next to the relevant output channel.
Enter a name for the channel in the Channel name field.
Select the Output type drop down list, and choose either:
- Toggle — Toggle will have an On state and an Off state.

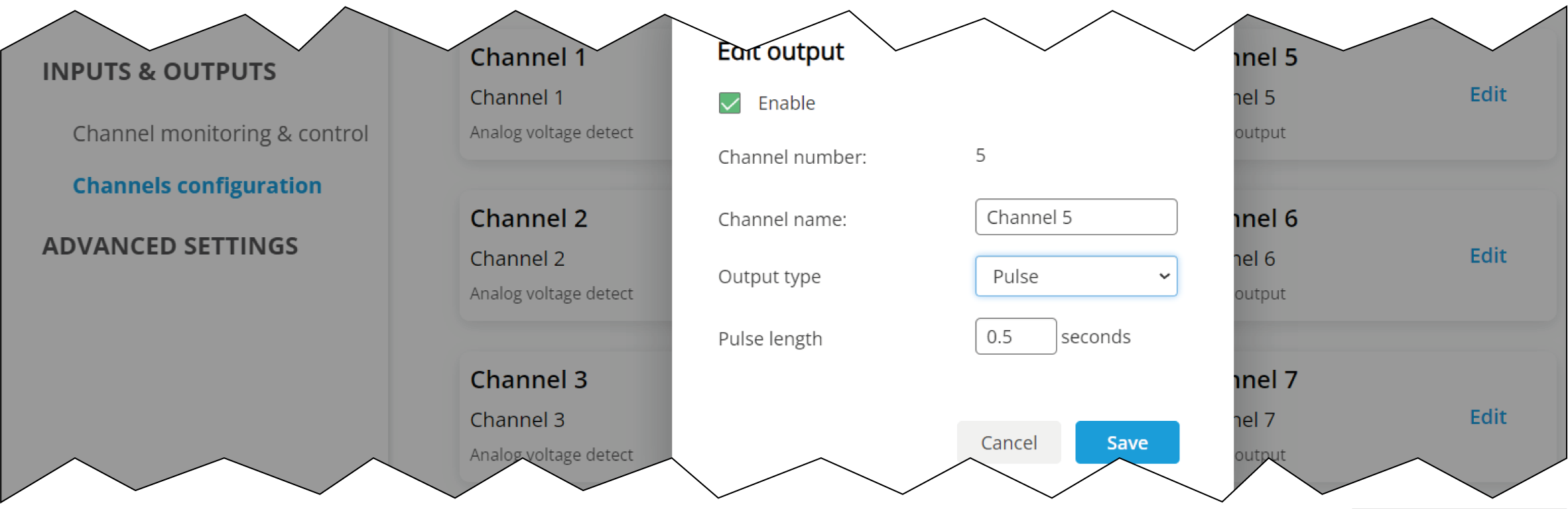

- Pulse — Pulse is a momentary On signal, and automatically switches off after the time in seconds specified in the Pulse length field.
Note
A pulse output cannot detect the state of the connected device. To detect the state you will have to connect and configure an input channel for the devices.
Select (tick) the Enable tick box to enable the output channel.
Select Save.
