5-in-1 antenna connections

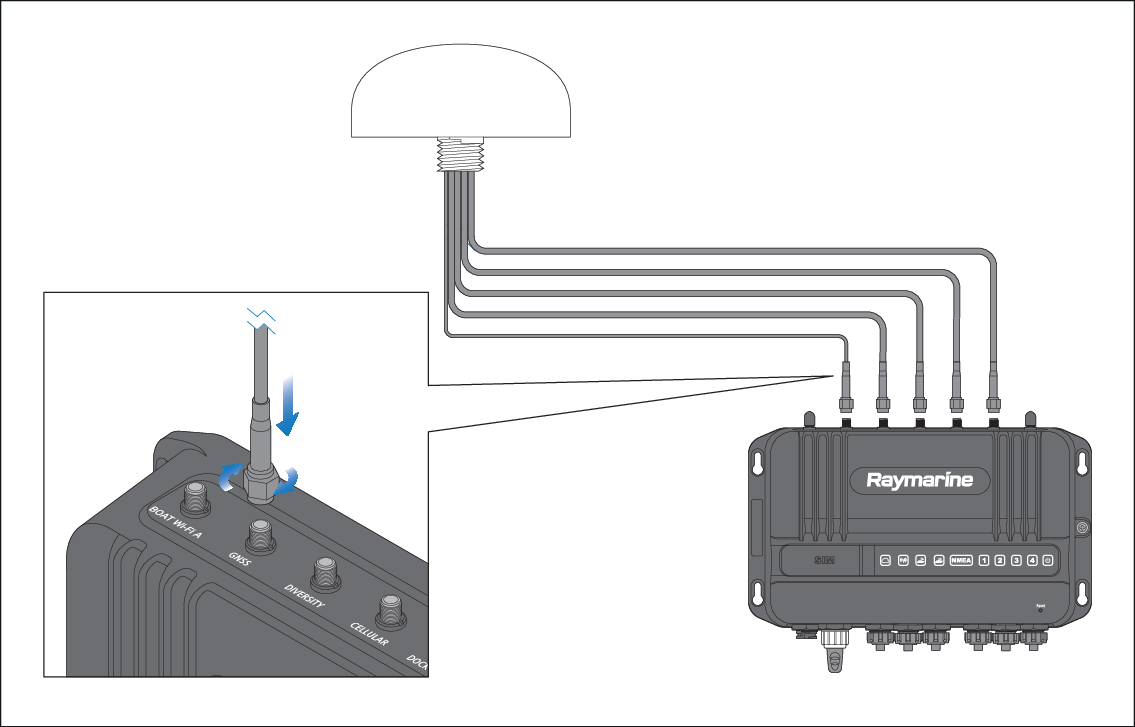

The supplied 5-in-1 antenna is connected to the antenna connections on the top of the YachtSense™ Link unit.

Connections5-in-1 antennaGNSS (GPS)Dock WLANCellularDiversity

Connectors and cables are labelled appropriately. Connections are made by pushing the relevant cable connector over the relevant connector on the router and securing by turning the connector nut clockwise until tight.

The antenna’s supplied captive cable is 5 m (16.4 ft) in length. This length can be extended if required using the optional 5 m (16.4 ft) antenna extension kit (A80701), for a total cable length (including the antenna’s supplied captive cable) of 10 m (32.8 ft).
