Required additional items

The following additional items are required when installing a YachtSense DCS-Series Digital Control System.

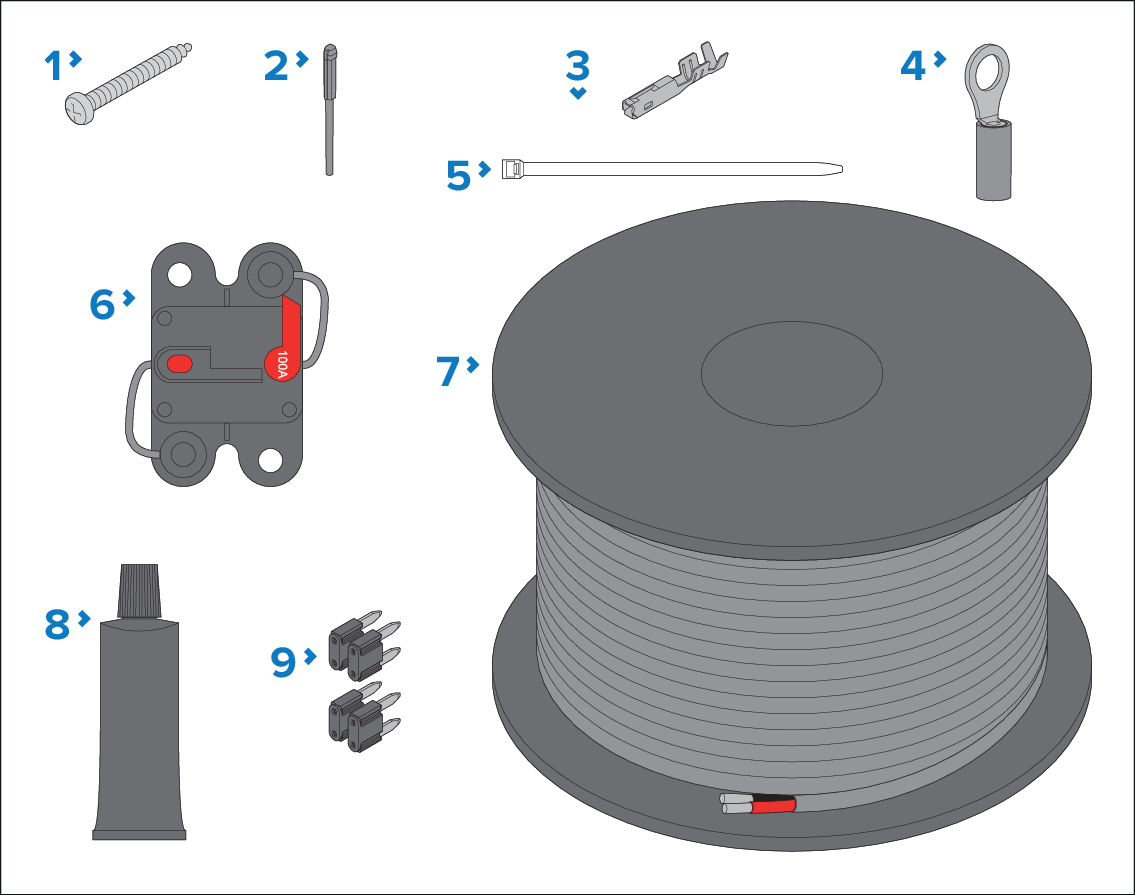

Additional items

  1. Fixings appropriate for mounting surface and 5 mm (0.2 in) module mounting holes. (4 x fixings are required for assemblies with less than 4 input / output modules. 7 x fixings are required for assemblies with 4 or more input / output modules.)

  2. MolexMolex® MX150 sealed cavity plugs (Molex® part number: 343450001) (Raymarine part number: A80624).

  3. MolexMolex® MX150 female terminal crimps:

    • 14–16 AWG: (Molex® part number: 330012003) (Raymarine part number: A80622).

    • 18–20 AWG (Molex® part number: 330012004) (Raymarine part number: A80623).

  4. 2 x M6 1/4” ring crimps.

  5. 2 x cable ties (up to 5 mm x 1 mm).

  6. Dedicated thermal breaker for each Master and Remote system.

  7. 2 core power cable (rated appropriately for the intended installation).

  8. Silicone or copper grease.

  9. Appropriately-rated micro blade fuses.

Note

  • Output modules are supplied with micro-blade fuses fitted to each channel. The fuses are rated for the channel’s maximum load capacity.

  • It is important that the fitted fuse rating reflects the load of the channel. Where the actual channel load is less than the maximum load capacity of the channel, the fuse should be replaced by an appropriately-rated fuse.
