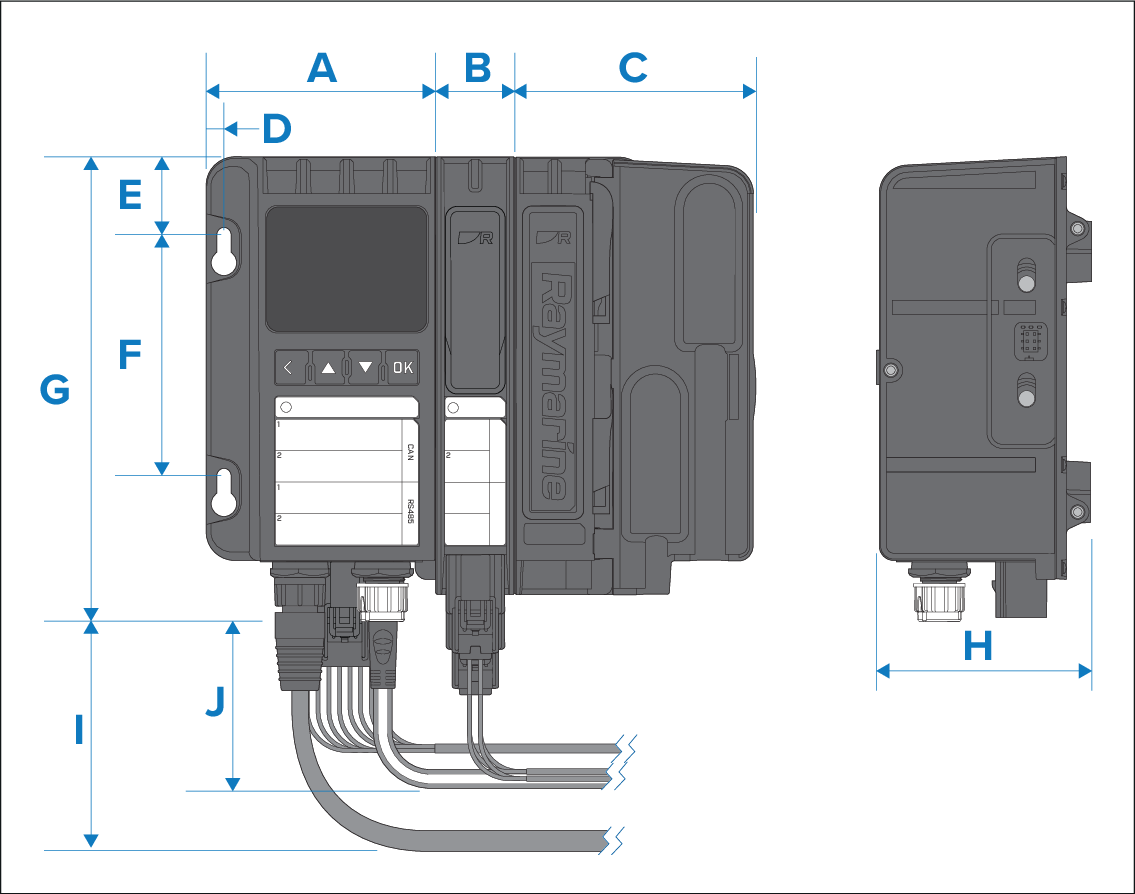

Master system and Remote system dimensions

A

81.00 mm (3.19 in)

B

28.00 mm (1.10 in) per module:

• Minimum = 0 modules

• Maximum = 6 modules – Approximately 168.00 mm (6.61 in)

C

86.50 mm (3.40 in) Minimum to account for door opening.

D

5.87 mm (0.23 in)

E

27.50 mm (1.08 in)

F

85.00 mm (3.35 in)

G

165.00 mm (6.50 in)

H

76.00 mm (2.99 in)

I

87.00 mm (3.43 in) Minimum for Master system.

J

80.00 mm (3.15 in) Minimum for Remote system.
