Fuse labeling

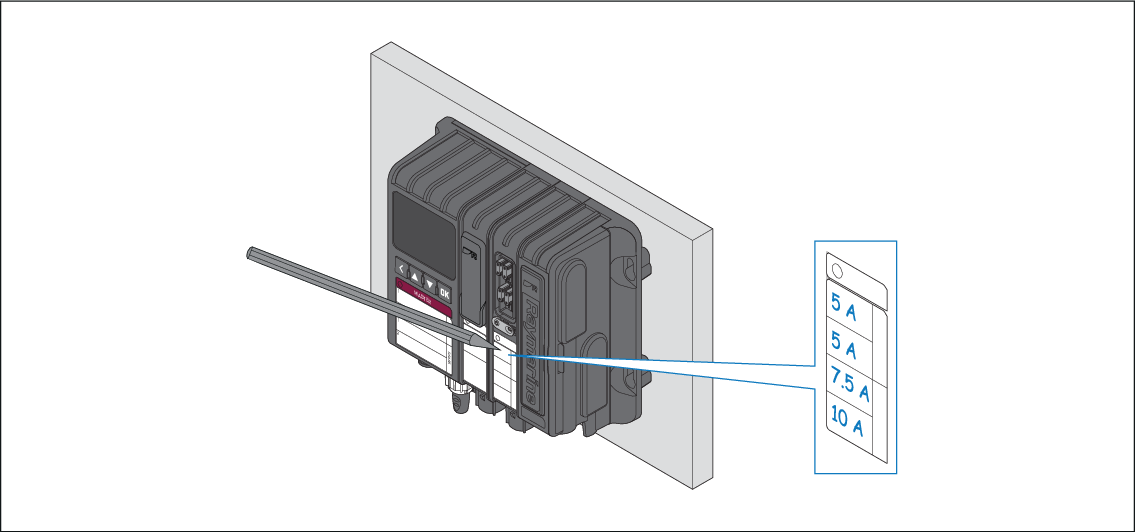

During installation the fuses for each module in the system must be checked to ensure that the fuses are appropriately rated for each channel’s current draw. Ensure that if required, the fuses are changed to reflect the actual current draw of the devices connected to each channel. It is also important to make a note of the ratings of the fitted fuses, using the label provided on the front of each module.

FuseLabeling

Noting the rating on the module will make it easier to identify the correct rating in the event of fuse replacement.

For reference, the fuses supplied and fitted to each power module type at the factory are as follows:

Module	Fuse rating
Low power (E70594)	15A
High power (E70595)	25A
Reverse power (E70596)	25A
