Route management

Routes are managed using the routes and tracks menu.

RouteManagementMenuListThe Routes & Tracks menu can be accessed from the Homescreen and from the Chart app: Homescreen > Routes & Tracks, or Chart app > Menu > Routes & Tracks .

RouteListMenu

When the routes and tracks menu is opened the routes menu is displayed by default.

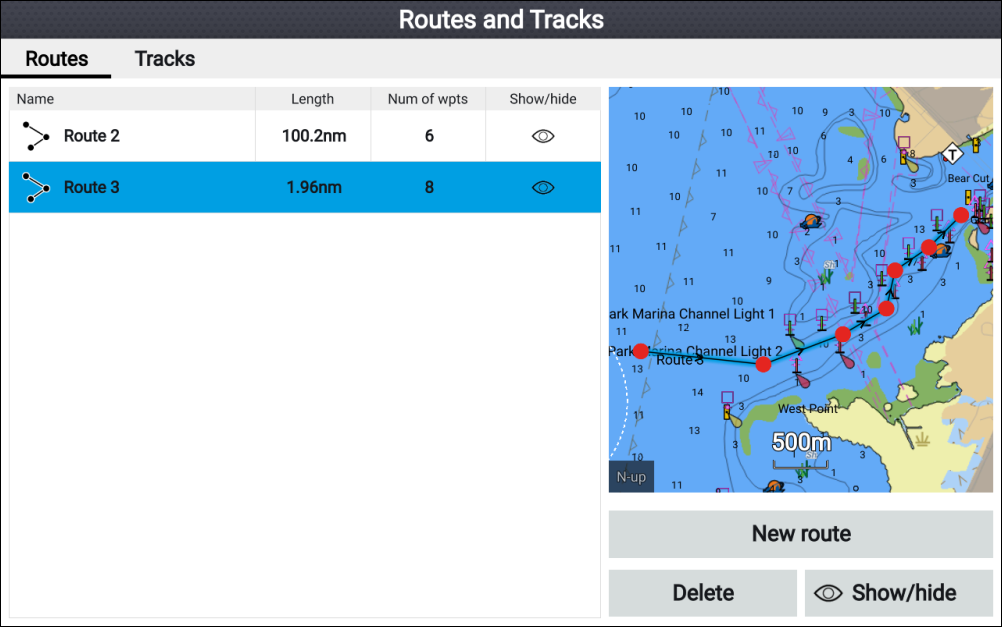

Routes menu

From the route menu you can Delete routes, create a New route using existing waypoints or Show/hide routes.

To view the route plan, select a route and choose View route plan from the pop-over menu.

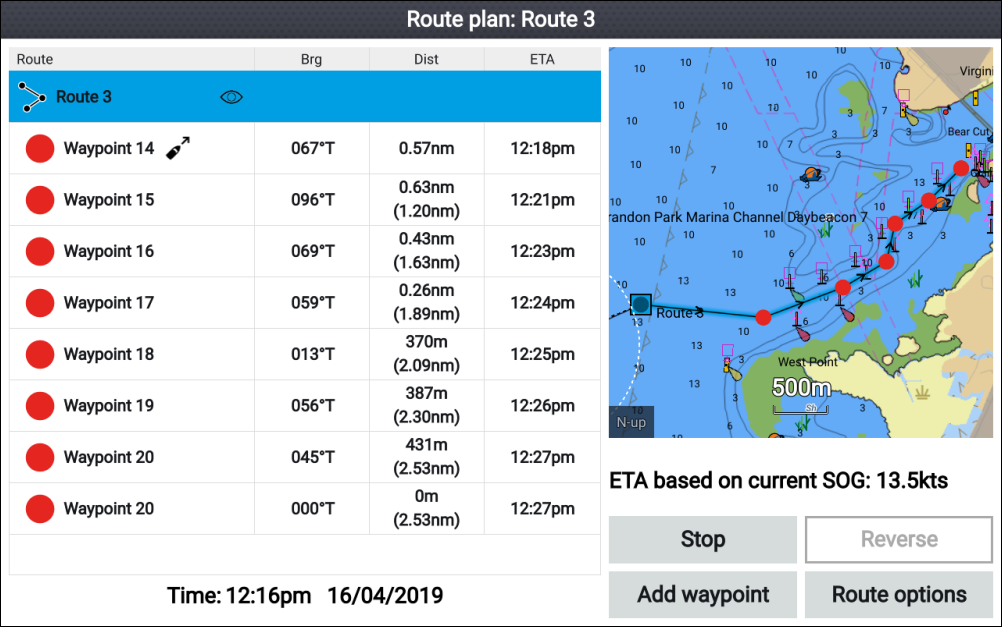

Route plan

RoutePlanThe route plan displays a list of all waypoints in the route and includes a LiveView pane showing the route’s location.

From the route plan you can:

  • RouteFollownavigate the route by selecting Follow

  • RouteReversechange the route direction by selecting Reverse

  • RouteAdd waypointadd an existing waypoint to the route by selecting Add waypoint

  • Route optionschange route options, such as route name, route color, route hide or delete the route by selecting the relevant option from the Route options pop-over menu.

    Note

    Route names can be any combination of letters, numbers, symbols and special characters and can include up to 16 characters. Route names must be unique.

By selecting a waypoint from the route plan you can use the pop-over menu to:

  • change the position of the waypoint in the route by selecting Move up or Move down.

  • RouteRemove waypointremove the waypoint from the route by selecting Remove from route.

  • delete the waypoint by selecting Delete waypoint.

  • edit the waypoint details by selecting Edit waypoint.

  • RouteFollowstart to follow the route from the selected waypoints by selecting Follow from here.
