Placing a waypoint (Detailed method)

You can place a waypoint at a specified location or at the vessel’s location and modify the defaults settings (e.g.: waypoint name, symbol or group etc.) by following the steps below.

1. WaypointPlacementUse the Directional pad to place the cursor over the desired location and press the Waypoint button.

   The app will be in cursor mode and the ‘waypoint saved’ notification is displayed.



   Note

   If there is no interaction with the notification within 5 seconds the notification will automatically close, saving the waypoint with the default values.

2. Press the Down button.

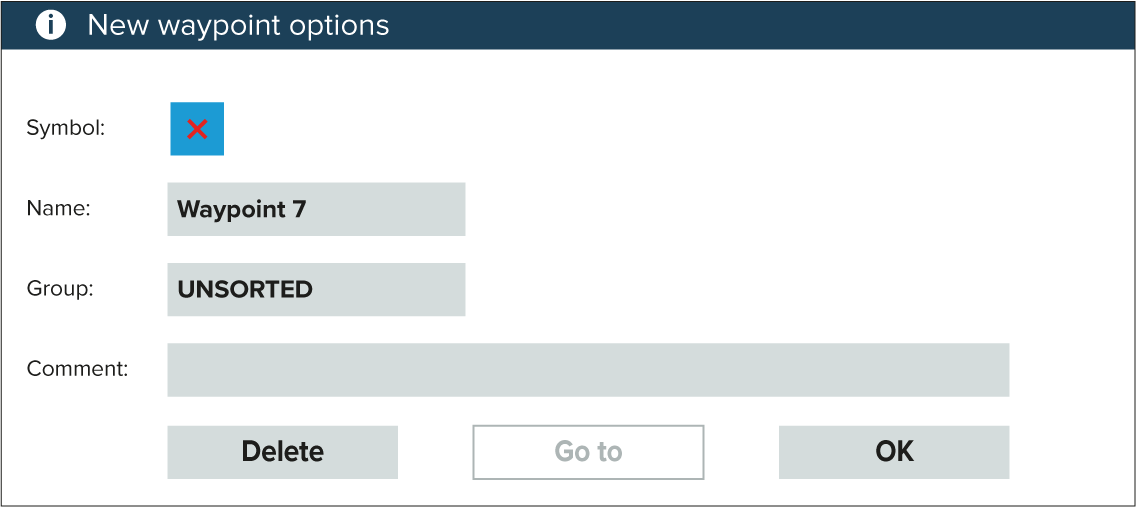

   WaypointDetailsCustomizingThe ‘new waypoint options’ menu is displayed.



3. You can select the waypoint symbol to view a list of available symbols and then select the symbol you want to use.
4. WaypointNameYou can select the Name: field to open the onscreen keyboard and customize the name of your waypoint.
5. WaypointGroupYou can select the Group: field to open the list of waypoint groups and either choose an existing or create a New group.
6. WaypointCommentsNotesYou can also add notes about the waypoint by selecting the Comment: field and using the onscreen keyboard.
7. When you have finished customizing the waypoint details, press the OK button to save the details.
8. WaypointGotoYou can select Goto to begin navigation to the new waypoint.

Note WaypointDelete

Selecting Delete will delete the waypoint.
