Navigation and sailing dials
Dials are available for the Navigation and Sailing pages, which provide a compass dial displaying various data indicators.
The navigation and sailing dials are only available when the display’s Activity type is set to Sailing, when completing the startup wizard.
The Activity type is specified during the initial startup wizard. If you want to change the Activity type after that initial selection, you must first perform a factory reset for the display and complete the startup wizard once again. For more information, refer to: Changing activity type

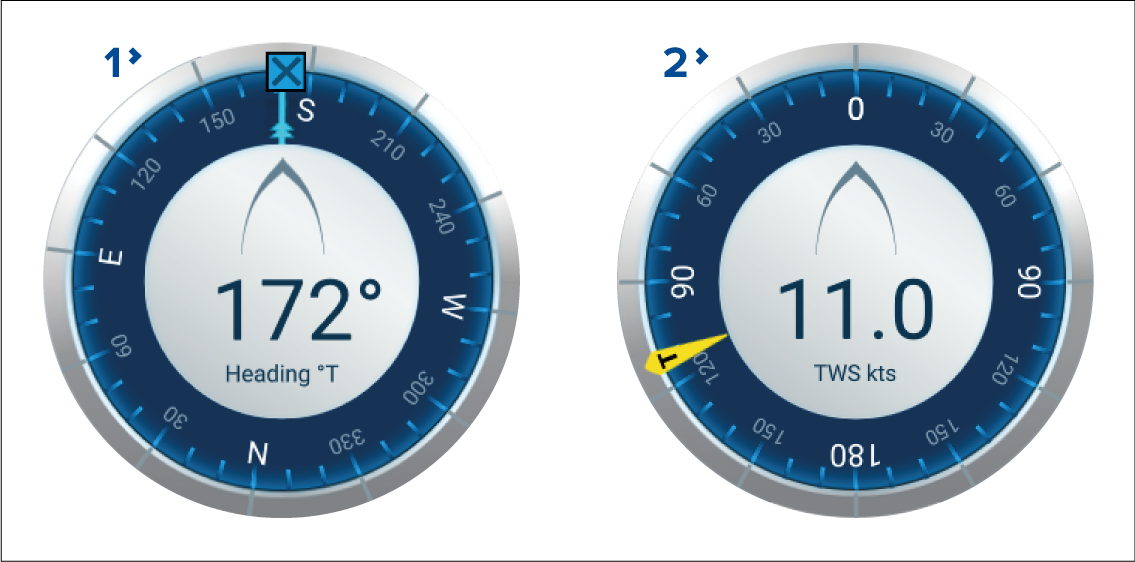

Navigation dial — The navigation dial provides a full compass with Heading read out, COG indicator and destination waypoint indicator.
Sailing dial — The sailing dial provides a full compass with wind speed read out and wind angle indicator. The sailing dial can be switched between displaying True wind and Apparent wind.
Dial indicators:
 |
COG indicator Visual identification of your course over the ground. The COG indicator is available on the navigation dial when COG data is available. |
 |
Destination waypoint indicator Visual identification of the course to your current destination. The Destination waypoint indicator is available during active navigation (i.e.: Navigating to a waypoint, performing a goto or following a route). |
 |
True wind angle indicator Visual identification of the true wind angle. The indicator is available on the sailing dial when wind data is available and the dial is set to TWS. |
 |
Apparent wind angle indicator Visual identification of the apparent wind angle. The indicator is available on the sailing dial when wind data is available and the dial is set to AWS. |
