Element LightHouse Sport Operation Instructions

Element LightHouse Sport Operation Instructions

Navigating to a waypoint or point of interest

    81388 - Rev 17 - en-US

    Navigating to a waypoint or point of interest

    You can perform a “Goto” to a Waypoint or to a specific location.

    NavigationGotoChartGotoWaypointGotoGoto waypointChart appNavigation

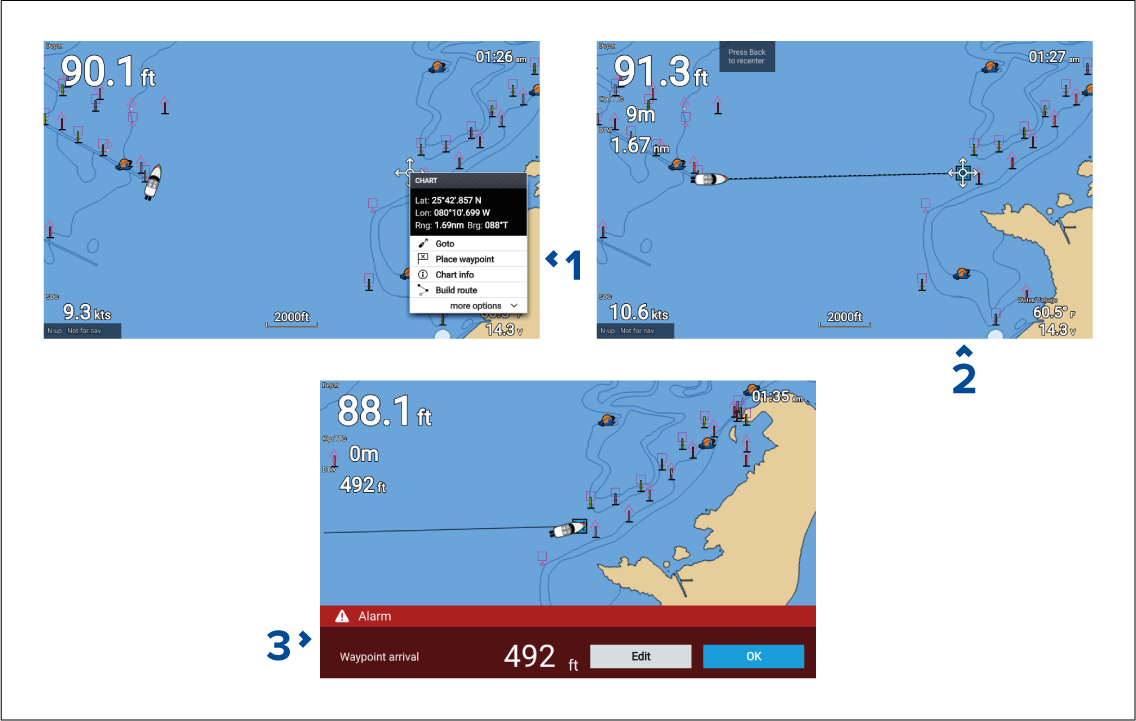

    1. Select the waypoint or point of interest and select Goto from the context menu.
      You can stop the Goto at any time by selecting Stop from the context menu, or by selecting another Goto.
      The Chart app will begin active navigation.
    2. Navigate your vessel to the destination point, using the Chart app as a guide.
    3. Select OK to accept the waypoint arrival alarm, which is triggered when you reach a specified distance from the waypoint.

    You can also perform a Goto from the Go menu: Menu > Go .

    Note

    In a network that contains 2 Element™ displays, with one display performing active navigation (i.e.: performing a Goto or a Follow) navigation options will not be available on the networked display.

    Contents
    1. Adjusting the waypoint arrival alarm
      The waypoint arrival alarm is enabled by default. The waypoint arrival alarm creates a virtual circle, of the specified radius, around the destination point. When your vessel reaches the virtual circle the alarm is triggered.
    Parent topic: Navigation
    Previous topic: Autopilot command
    Next topic: Restarting cross track error (XTE)
