Menu types

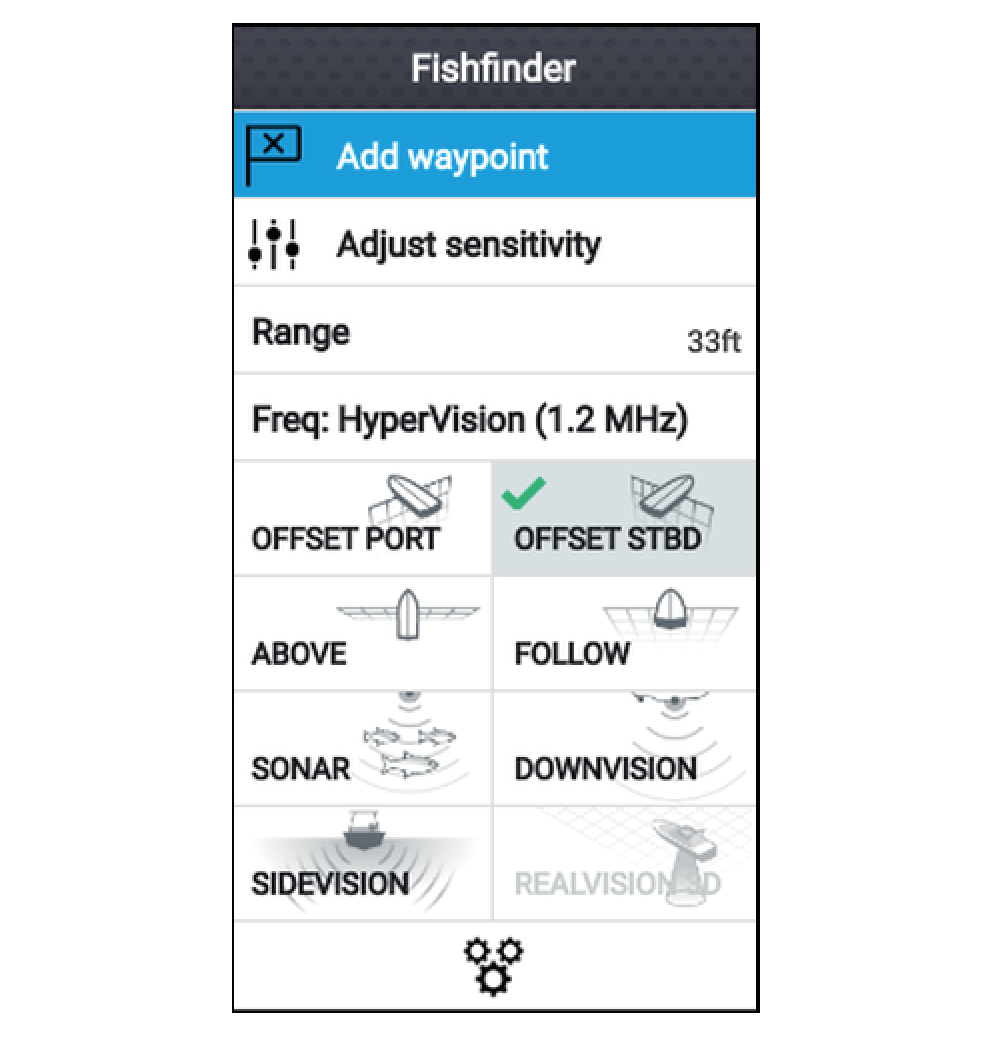

App menus

• Each app includes a menu. Menus provide access to the app’s features and settings.

• The menu is displayed on the right side of the screen when the Menu button is pressed.

• From a single app page, pressing the Back button or the Menu button will close the app menu.

• From a multi-app splitscreen page, pressing the Back button will close the app menu and return to the multi-app page view.

• From a multi-app splitscreen page, pressing the Menu button will close the app menu, maintaining the app in fullscreen page view.

• Menu options that include a ‘>’ symbol will open a menu page or related menu options for that item.

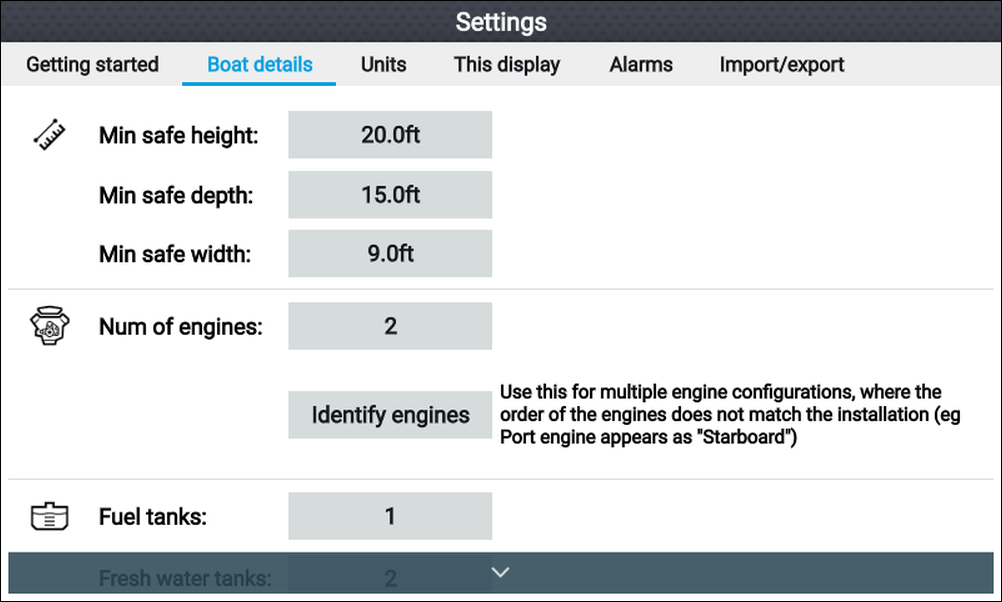

Menu pages and tabs

• Menu pages are accessed from app menu options and icons on the homescreen.

• Menu pages are fullscreen pages containing menu options and settings, menu pages are usually set out in tabs with each tab containing options relevant to the tab’s title.

• Selecting tab titles will display the contents for that tab.

• Pressing the Back button will return you to the previous menu.

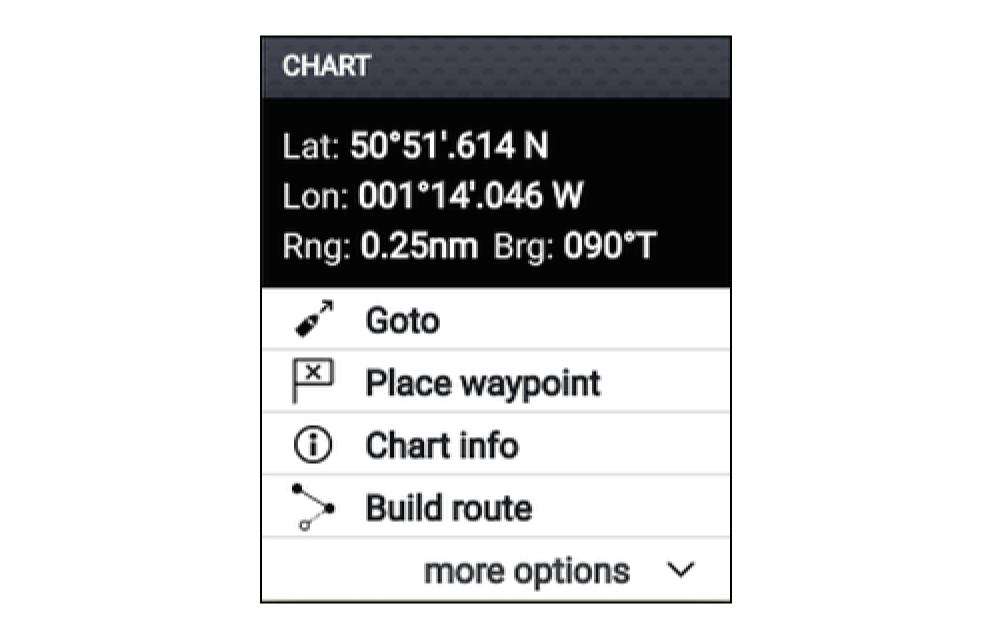

Context menus

• Context menus are available in the Chart and Fishfinder apps. Context menus are accessed by highlighting an object or location on the app screen and pressing the OK button.

• Context menus provide context-sensitive information and options.

• Selecting more options will display further contextual menu options.

• Pressing the Back button or the Menu button will close context menus.

Pop-over menus

• Pop-over menus are available on the homescreen, in apps and from menu pages. Pop-over options provide access to further menu options and settings.

• Pressing the Back button will close pop-over menus.
