Element LightHouse Sport Operation Instructions

Element LightHouse Sport Operation Instructions

Inserting a MicroSD card

    81388 - Rev 17 - en-US

    Inserting a MicroSD card

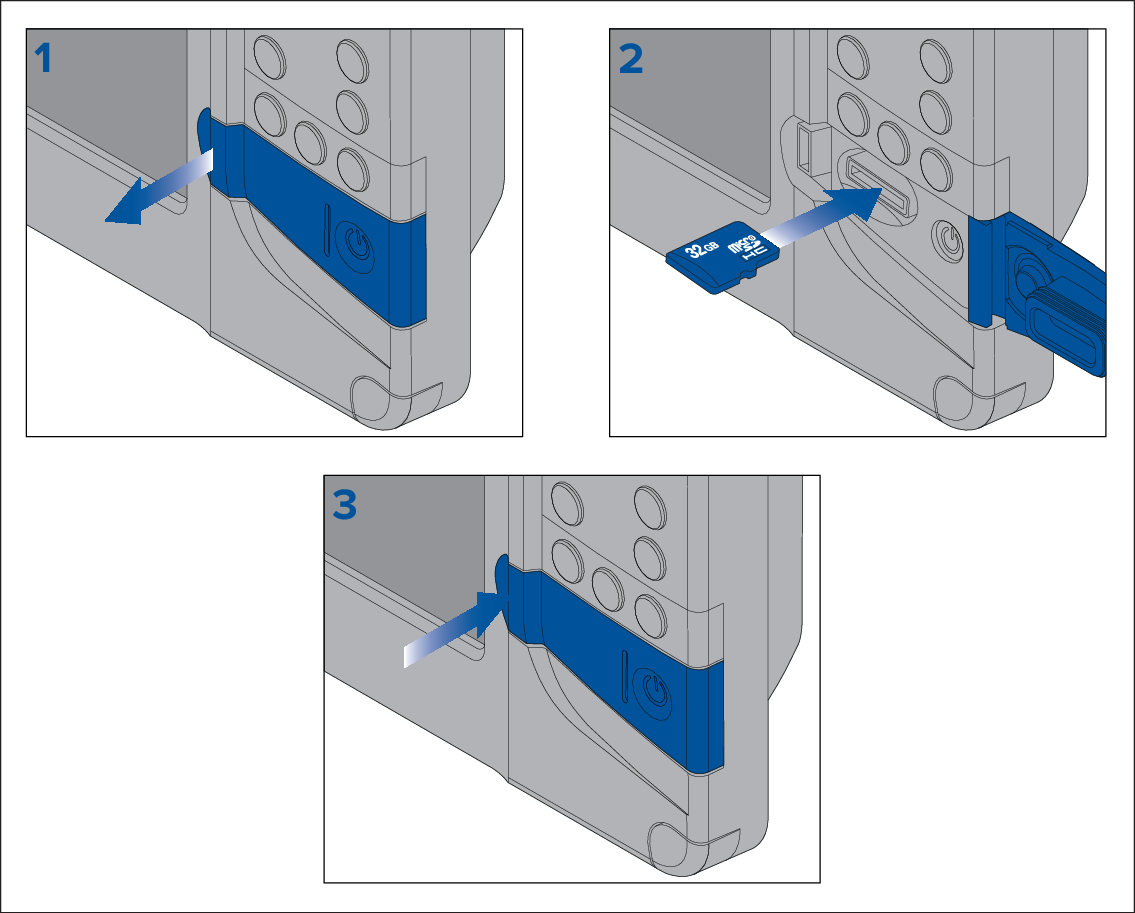

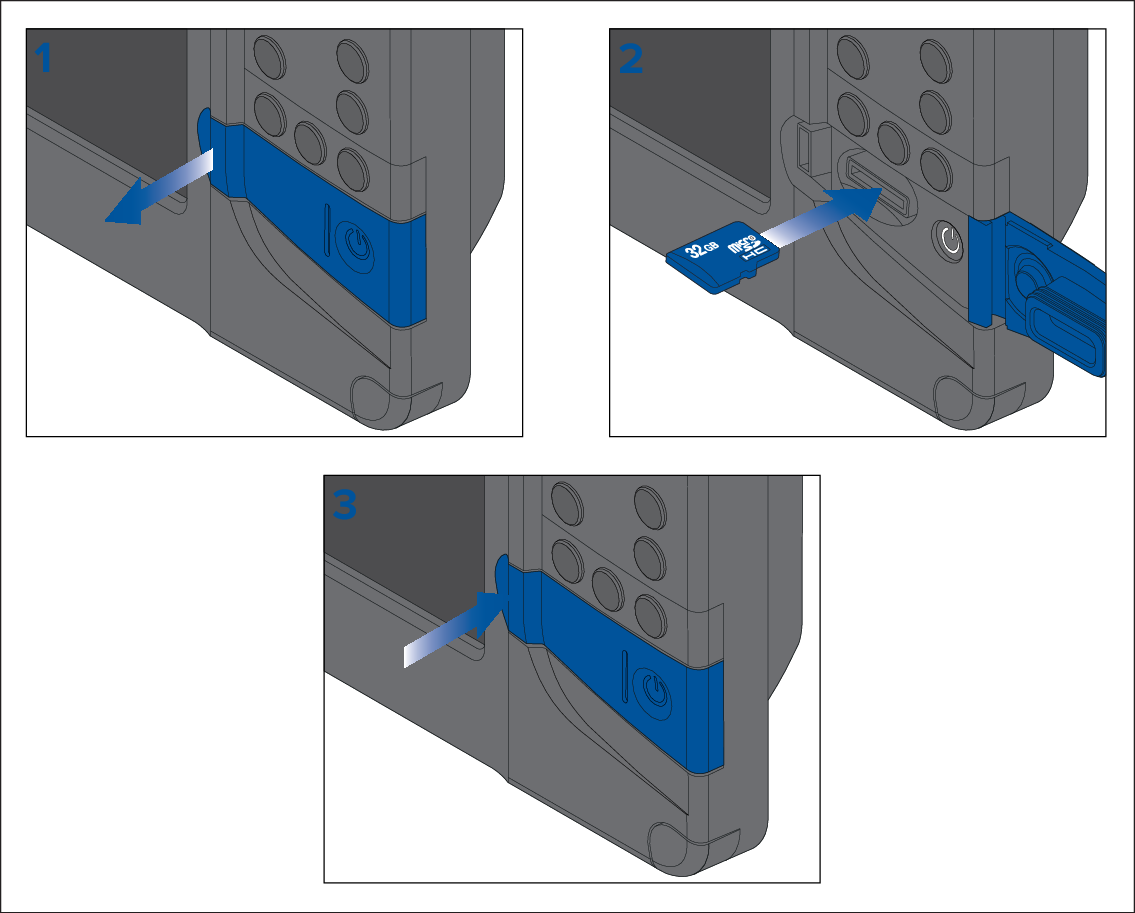

    MicroSDinserting into display

    1. Open the card reader door.
    2. Ensuring correct orientation (contacts facing down), insert the MicroSD card into the card reader slot.
    3. Close the card reader door, ensuring that the edges of the door are flush.
    Parent topic: Memory card compatibility
    Previous topic: Removing MicroSD card from its adaptor
    Next topic: Removing the MicroSD card
