GPS/GNSS status

Your vessel’s GPS/GNSS position coordinates are provided in the top left corner of the homescreen. You can access fix accuracy and settings by selecting this area.

If latitude and longitude is displayed on the homescreen, your vessel has a valid position fix. If the text turns red, it means that your fix accuracy is low.

GPS/GNSSFixSatellite status

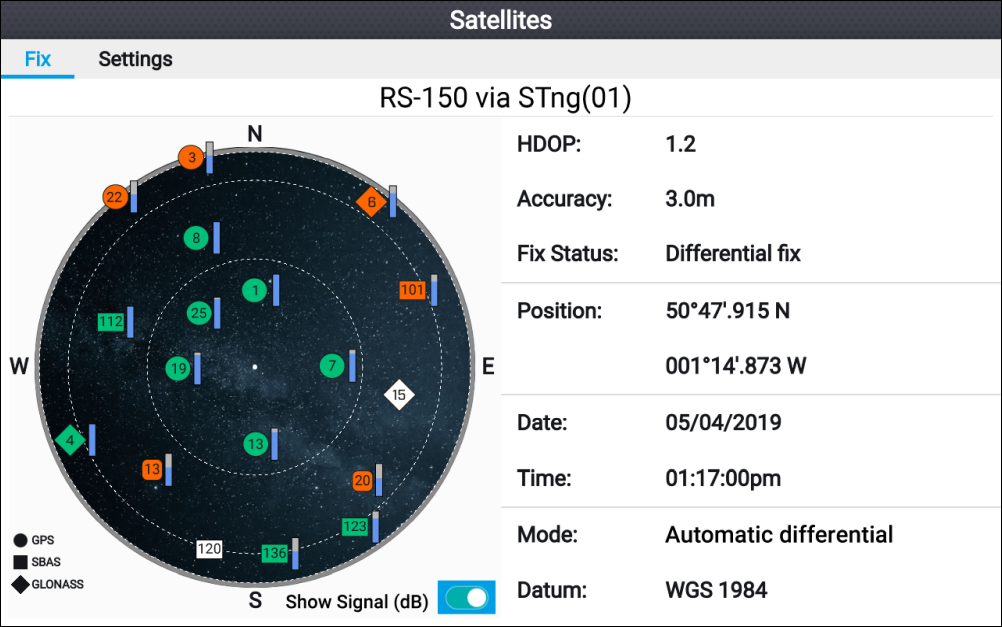

The sky view on the left side of the page shows available satellites and identifies the GNSS constellation to which they belong. The color of the satellite symbol identifies its status:

  • White = searching for satellite

  • Green = satellite in use

  • Orange = tracking satellite

GNSS / GPSShow Signal (dB)The Show Signal (dB) toggle switch can be used to show or hide a signal strength bar for each satellite.
