Configuring transducer settings

For systems with a transducer connected, as part of setting up your system for the first time it is important that you correctly configure your transducer.

Transducer configuration settings are available from the Fishfinder app.

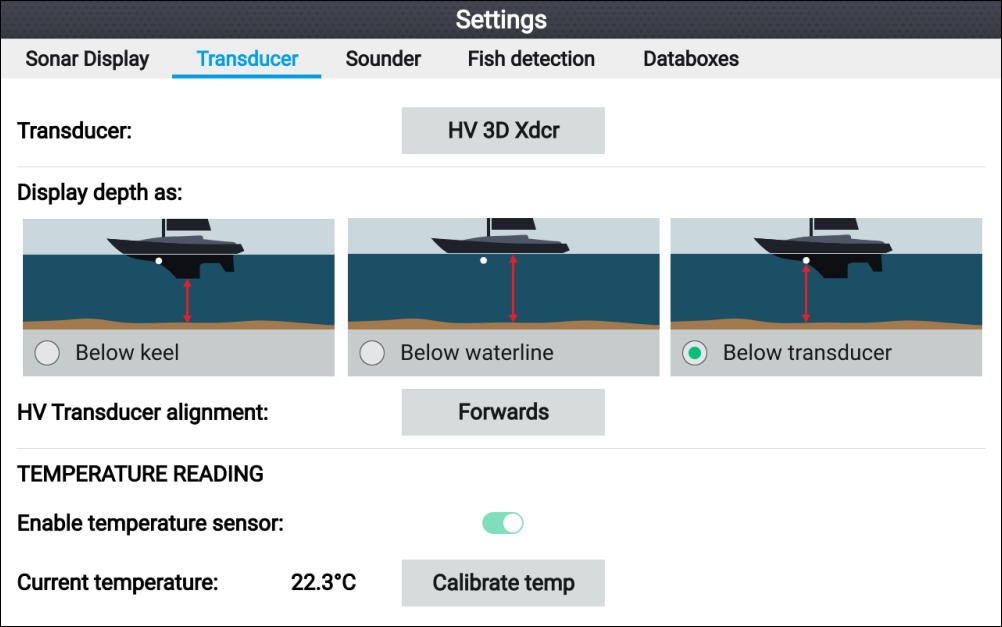

1. Transducer SetupTransducer ConfigurationSelect Transducer from the Fishfinder app’s Settings menu: Menu > Settings > Transducer
2. Transducer alignmentTransducerport/starboard swapIf your installation required you to install an all-in-one transducer backwards (e.g.: this may occur when connecting the transducer to a trolling motor), then select Backwards from the HV transducer alignment option. This ensures that the port and starboard channels appear correctly orientated onscreen, otherwise keep the default setting: Forwards.
3. Select where you want your depth measurements taken from:Depth offset
   1. Below transducer — No offset required
   2. Below keel — Enter the distance between the transducer face and the bottom of the keel.
   3. Below waterline —Enter the distance between the bottom of your keel and the waterline.
4. You can configure temperature settings as follows:
   1. Enable or disable temperature readings as required.
   2. If enabled, check the temperature reading against the actual water temperature.
   3. TransducerTemperature calibrationTransducerTemperature settingsIf the current reading requires adjustment, select Calibrate temp and enter the difference between your 2 readings.
