Alarms
Alarms are used to alert you to a hazard or situation requiring your attention. Alarms are triggered based on their specified thresholds.
AlarmsAlarms are color coded to signify their severity:

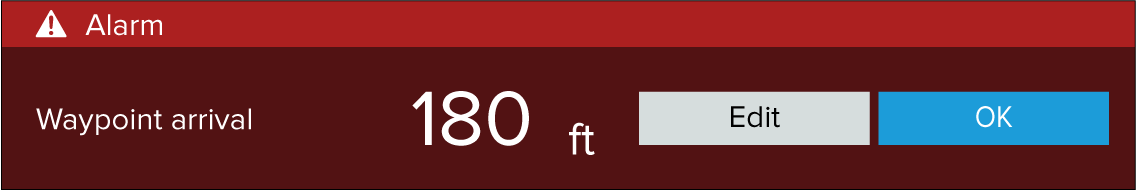

Figure 1. Dangerous alarm example
AlarmsDangerousRed — is used to signify a dangerous alarm condition, immediate action is required due to a potential or immediate danger to life or vessel. Dangerous alarms are accompanied by an audible tone. The Dangerous alarm notification and audible tone will continue to be displayed until acknowledged or the conditions that triggered the alarm are no longer present.

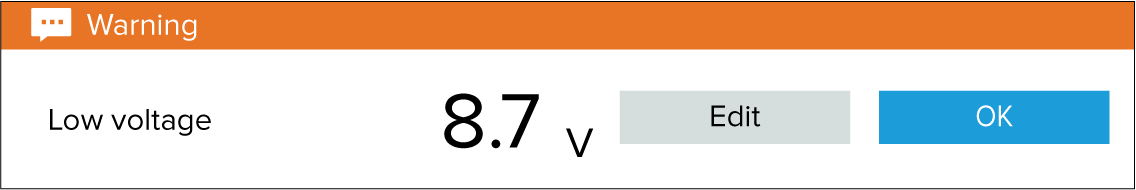

Figure 2. Warning alarm example
AlarmsWarningOrange — is used to signify a warning alarm condition. Warning alarms are used to signify that there has been a change in situation that you need to be aware of. Warnings alarms are accompanied by an audible tone. The warning alarm notification and audible tone will continue to be displayed until acknowledged or the conditions that triggered the alarm are no longer present.
Figure 3. Notification example
NotificationsBlue — is used to signify information requiring user acknowledgement. Information notifications may self dismiss after 3 seconds, unless they require user interaction. Information notifications are not accompanied by an audible tone.
