SeaTalk NG / NMEA 2000 connection

Your product can transmit and receive data to and from devices connected on SeaTalk NG or NMEA 2000 CAN bus networks. Connection is established using the SeaTalk NG connector located on the rear of the unit.

ConnectionsSeaTalk NGNMEA 2000DeviceNet

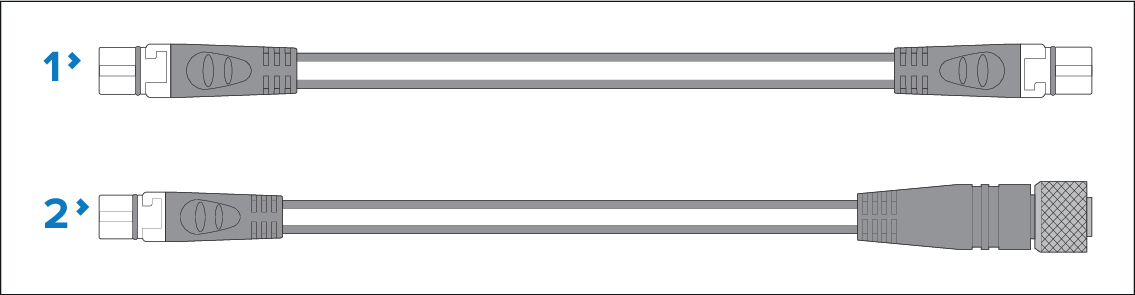

  1. Use the supplied SeaTalk NG spur cable to connect your product to your SeaTalk NG network.

  2. You can also use a DeviceNet to SeaTalk NG adaptor cable (not supplied) to connect your product to an available spur on a NMEA 2000 network.

Note

  1. The product must be connected to a correctly terminated backbone.

  2. You cannot connect your product directly to a MFD.

  3. Refer to the instructions supplied with your SeaTalk NG / NMEA 2000 device for details on creating a backbone.
