Removing the mounting hole covers

Before the radio can be panel mounted the mounting hole covers must be removed.

MountingHole covers

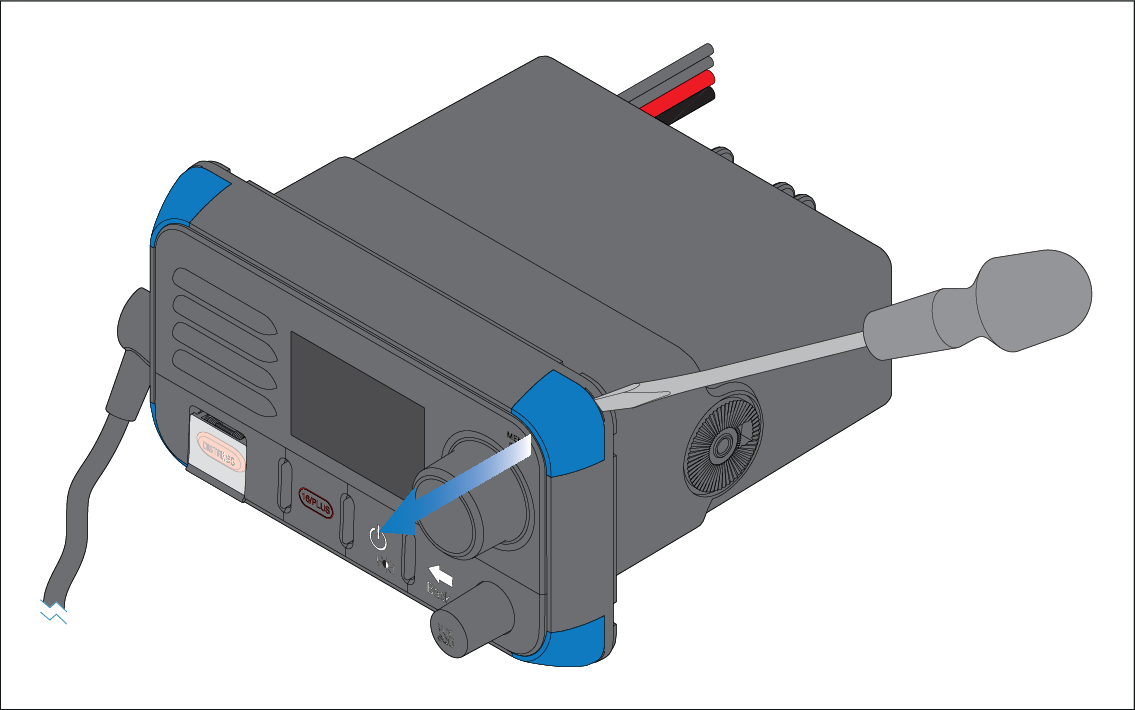

1. Using a flat blade screw driver, insert the tip of the screw driver in the slot between the back of the cover and the unit.
2. Carefully lever the cover forward away from the unit.
3. Repeat steps 1 and 2 for the remaining mounting hole covers.
