Connections overview — Ray53

The following connections are available on the Ray53.

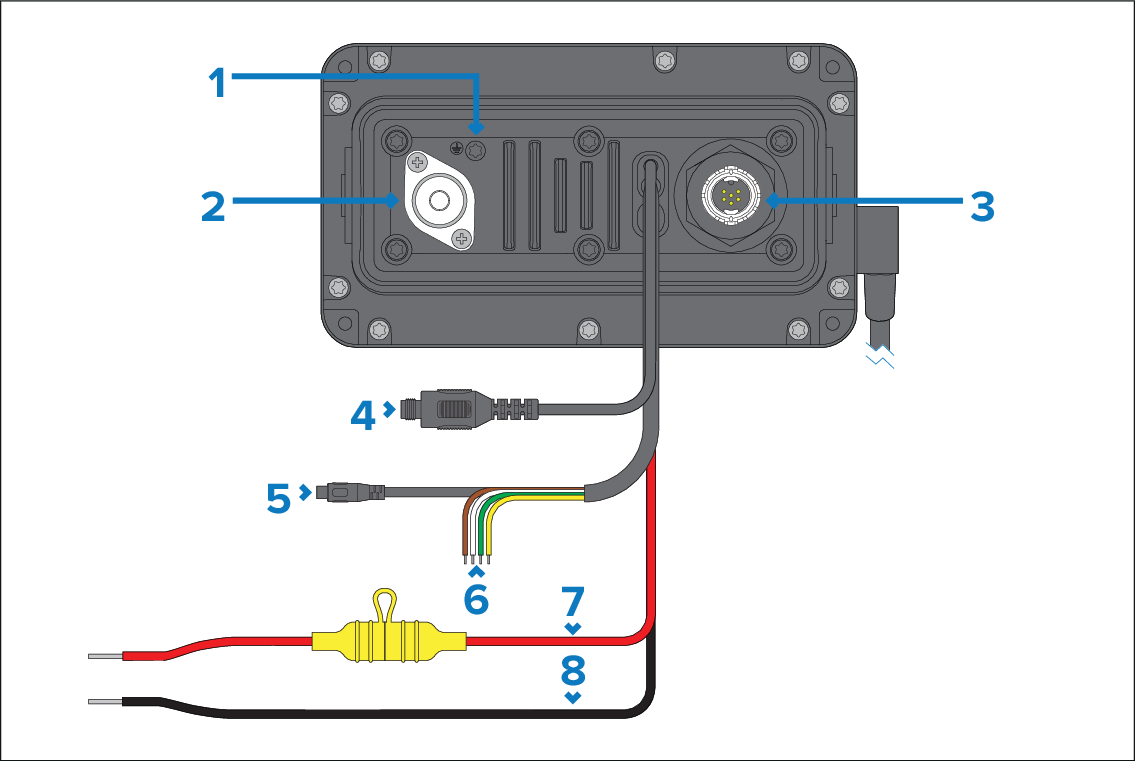

ConnectionsRay53

  1. Grounding point — DO NOT USE!

  2. SO239 VHF antenna connection.

  3. SeaTalk NG connection.

  4. TNC external GNSS (GPS) antenna connection.

  5. RCA Audio connection.

  6. NMEA 0183 connection.

  7. Red wire (positive) — connects to the power supply’s positive terminal.

  8. Black wire (negative) — connects to the power supply’s negative terminal.
