Bracket mounting
Follow the steps below to mount the product on
it’s bracket.
Before mounting the unit ensure that you have:
Selected a suitable location, ensuring there is nothing behind the mounting surface that may be damaged when drilling.
Identified the cable connections and route that the cables will take.
Attached the front bezel.

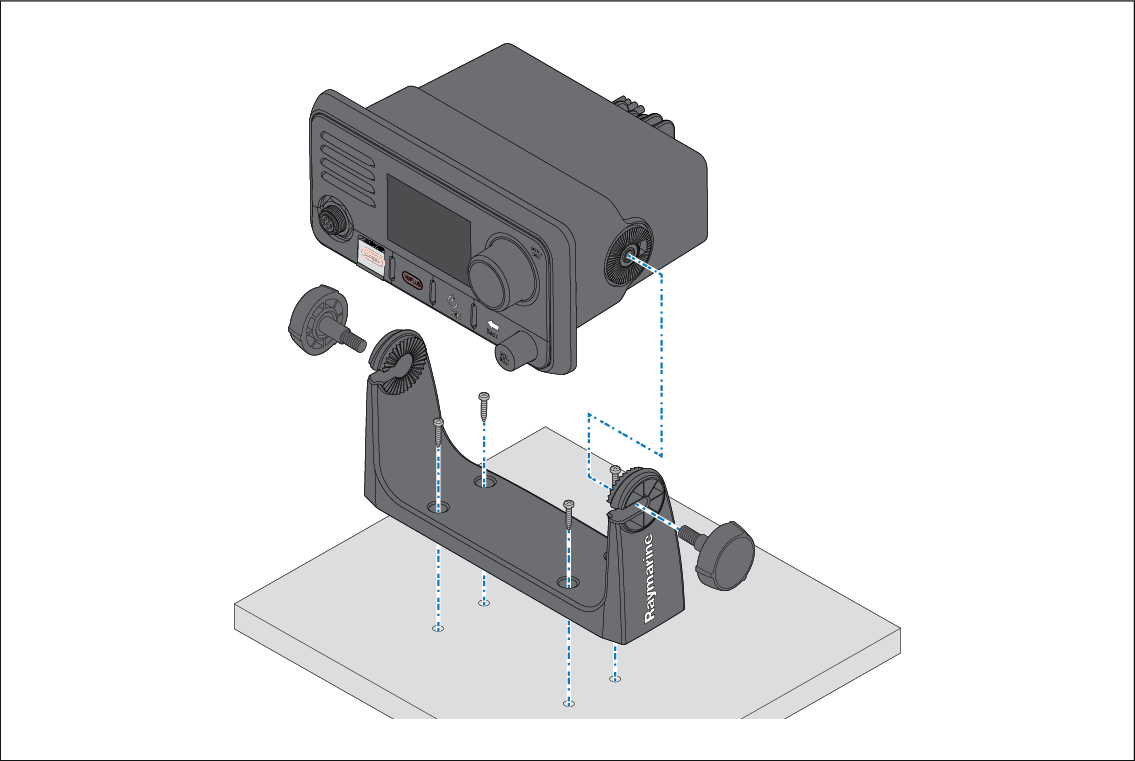

- Mark the location of the bracket mounting holes on the mounting surface.
- Drill holes for the mounting fixings using a drill with a suitable sized drill bit.
- Use the fixings provided to attach the bracket securely to the mounting surface.
- Attach the unit to the bracket and secure in place using the bracket mounting knobs.
Note
Drill bit, tap size and tightening torque is dependent on the thickness and type of material the unit is to be mounted on.
