Product overview

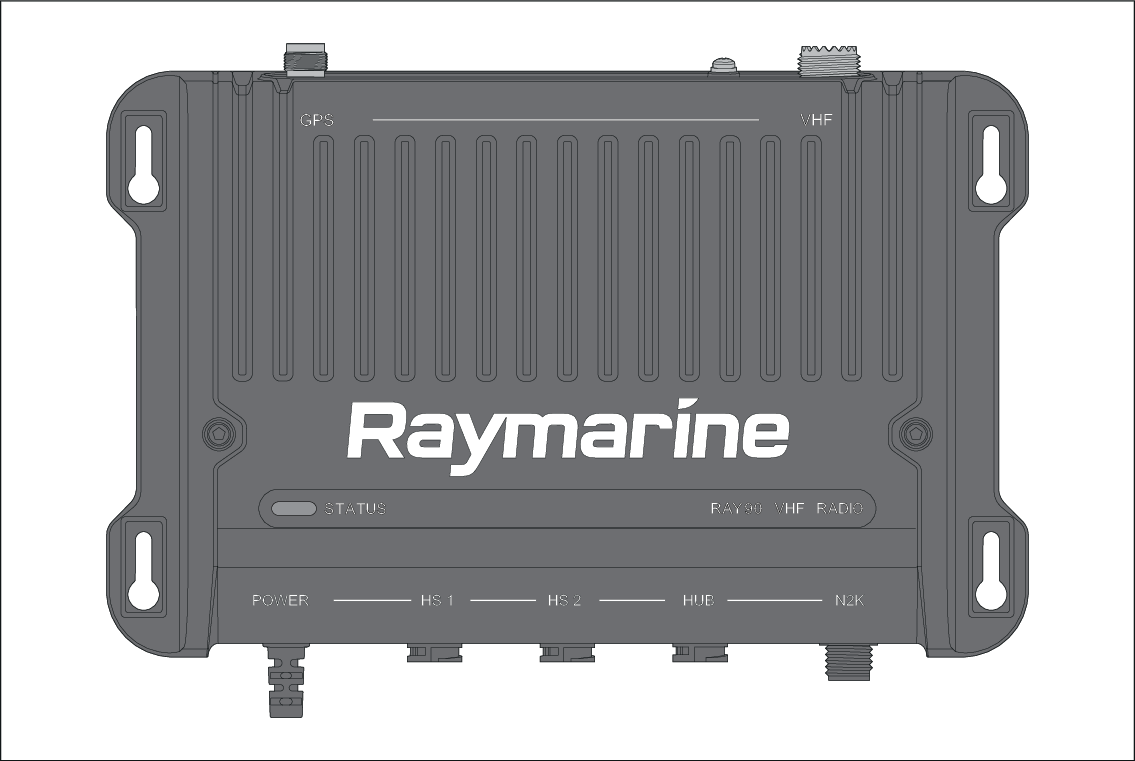

The Ray90 and Ray91 are 12 V dc, Class D Digital Selective Calling (DSC) VHF radios. DSC enables you to make and receive calls to a specific radio, and to transmit and receive position information to and from a selected radio. DSC also allows transmission of a distress alert, to all radios within range, at the touch of a button. Once a DSC request is sent and acknowledged voice communication is carried out on the channel chosen by the caller. The radio can transmit and receive on all available US, Canadian, International and Private marine VHF channels.

ProductOverviewThe Ray90 includes the following features:

  • Built-in GNSS (GPS) receiver requiring an external antenna.

  • Up to 2 fully functioning wired handset stations with wired speaker connections.

  • Connect to a wireless hub to add up to 3 fully functioning wireless handset stations with wireless speaker connections.

  • With an optional loud hailer connected the radio can also be used as a fog horn or loud public address (PA) system.

The Ray91 includes the same features as the Ray90 and also has a built-in AIS receiver.
