Product dimensions — Base station
The Base station dimensions are listed below.

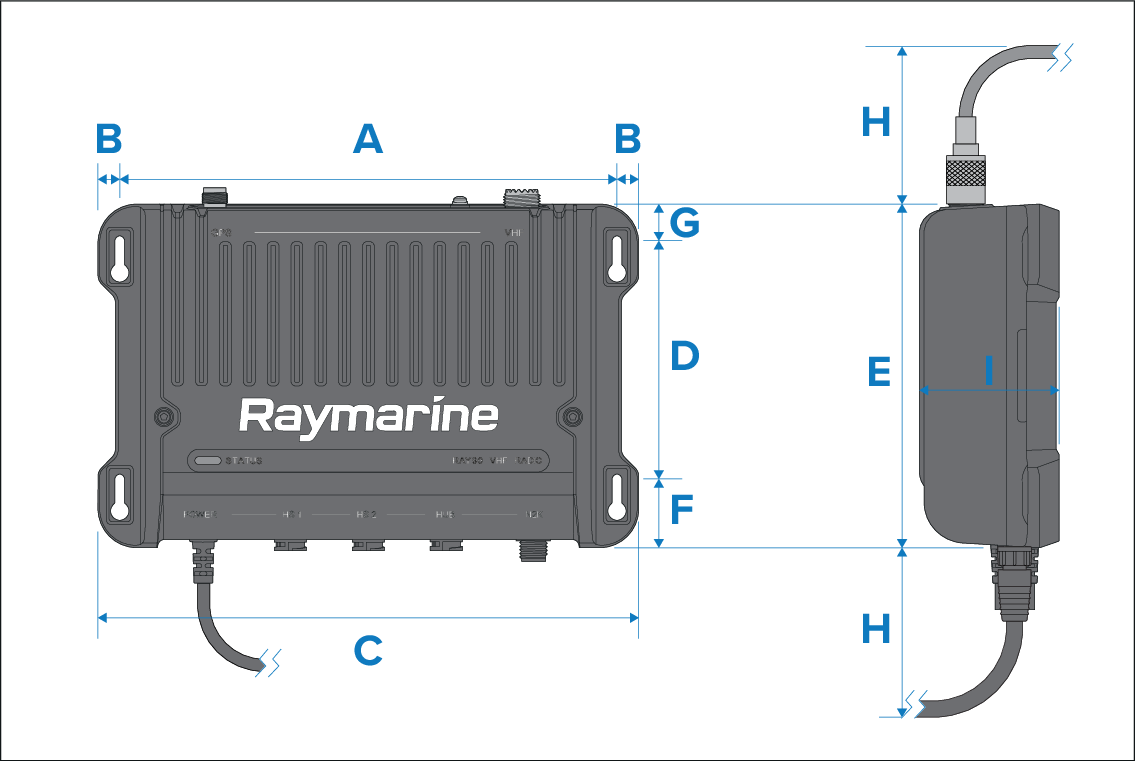

DimensionsBase station
Dimension |
|
|---|---|
A |
217.00 mm (8.54 in) |
B |
9.50 mm (0.37 in) |
C |
235.95 mm (9.29 in) |
D |
104.00 mm (4.09 in) |
E |
149.95 mm (5.91 in) |
F |
30.00 mm (1.18 in) |
G |
14.00 mm (0.55 in) |
H |
90.00 mm (3.54 in) |
I |
61.00 mm (2.40 in) |
The Base station includes a fitted power cable and data cable. The power cable length is 1.2 m (3.94 ft), and the Data cable length is 420 mm (1.38 ft).
