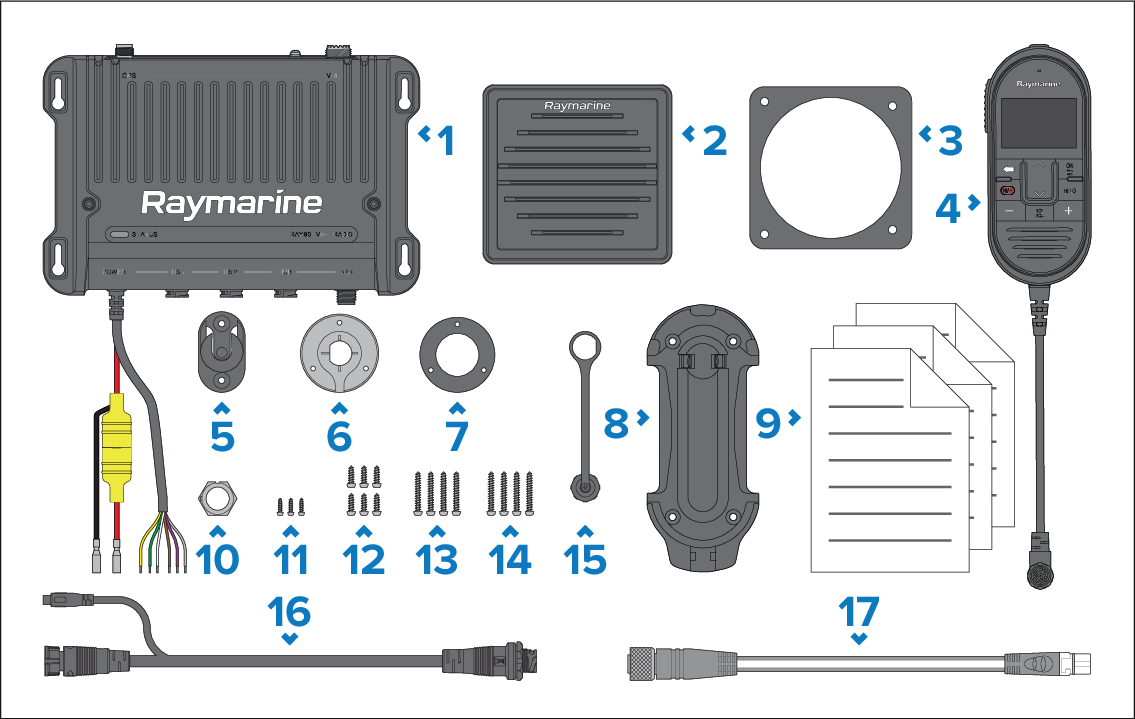

Parts supplied
The following parts are supplied with your product. Please ensure your box contents are correct before proceeding with the installation.
Parts supplied
Description |
|
|---|---|
1 |
Ray90 / Ray91 VHF DSC Radio base station (including fitted power and data cable). |
2 |
Passive speaker and bezel. |
3 |
Passive speaker mounting gasket. |
4 |
Wired handset. |
5 |
Handset hook plate. |
6 |
Through-panel cable mounting plate. |
7 |
Through-panel cable mounting plate gasket. |
8 |
Wired handset holster. |
9 |
Documentation. |
10 |
Through-panel cable mounting nut. |
11 |
3 x Through-panel cable mounting plate screws. |
12 |
6 x M4x12 screws (for Handset holster and hook plate mounting). |
13 |
4 x M4x25 screws (for wired speaker mounting). |
14 |
4 x M4x25 screws (for base station mounting). |
15 |
Wired handset adaptor cable with RCA Audio, 400 mm (1.3 ft). |
16 |
DeviceNet to SeaTalk NG adaptor cable, 1 m (3.28 ft). |
17 |
Through-panel cable mounting dust cap. |
