NMEA 2000 / SeaTalk NG connection

Your product can transmit data to devices connected on SeaTalk NG or NMEA 2000 CAN bus networks. Connection is established using the DeviceNet connector located on the bottom of the unit.

ConnectionsSeaTalk NGNMEA 2000DeviceNet

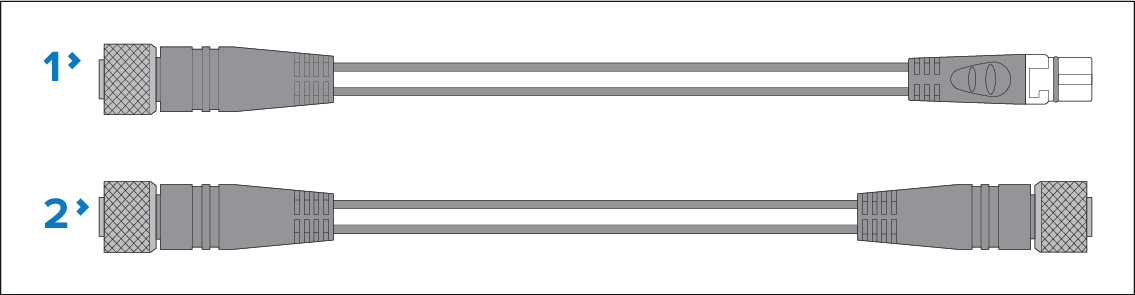

  1. You can also use the supplied to SeaTalk NG adaptor cable to connect your product to an available spur on your SeaTalk NG backbone.

  2. Alternatively you can connect your product to a NMEA 2000 backbone using a standard DeviceNet cable (not supplied).

For a list of available SeaTalk NG cables, refer to: Spares and accessories

Note

  1. The product must be connected to a correctly terminated backbone.

  2. You cannot connect your product directly to a Multifunction display / Chartplotter.

  3. Refer to the instructions supplied with your SeaTalk NG / NMEA 2000 device for details on creating a backbone.
