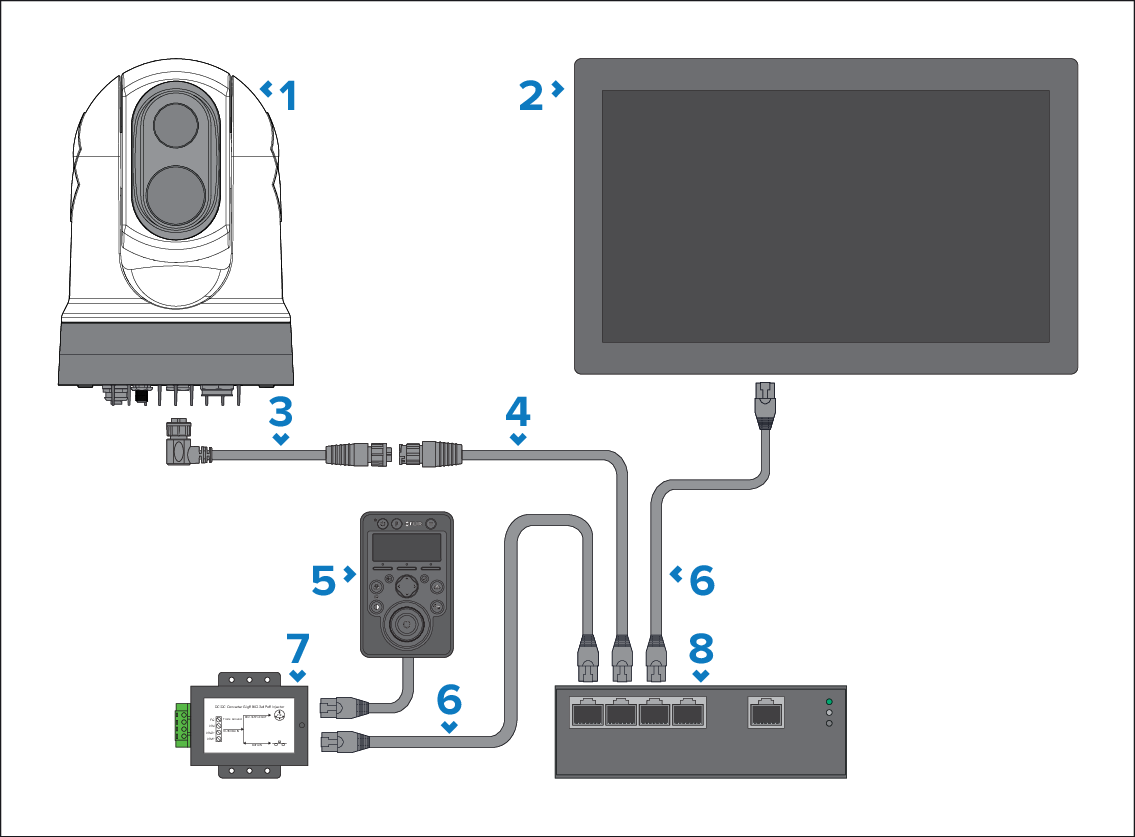

Single-camera system with a compatible MFD / chartplotter and JCU
Description |
|
|---|---|
1 |
Camera |
2 |
Compatible MFD / chartplotter, available separately |
3 |
Right-angled RayNet (Ethernet) to RayNet (Ethernet) cable (3 m (9.8 ft.)), 1x supplied with camera |
4 |
RayNet (Ethernet) to RJ45 adapter cable (100 mm (3.9 in)), 1x supplied with camera |
5 |
Joystick Control Unit (JCU-4 currently illustrated), available separately |
6 |
RJ45 to RJ45 Ethernet cable, available separately |
7 |
PSE (Power Sourcing Equipment) — e.g. a PoE Injector or PoE network switch) providing PoE (Power over Ethernet) to the JCU-4, available separately |
8 |
Ethernet network switch, available separately |
