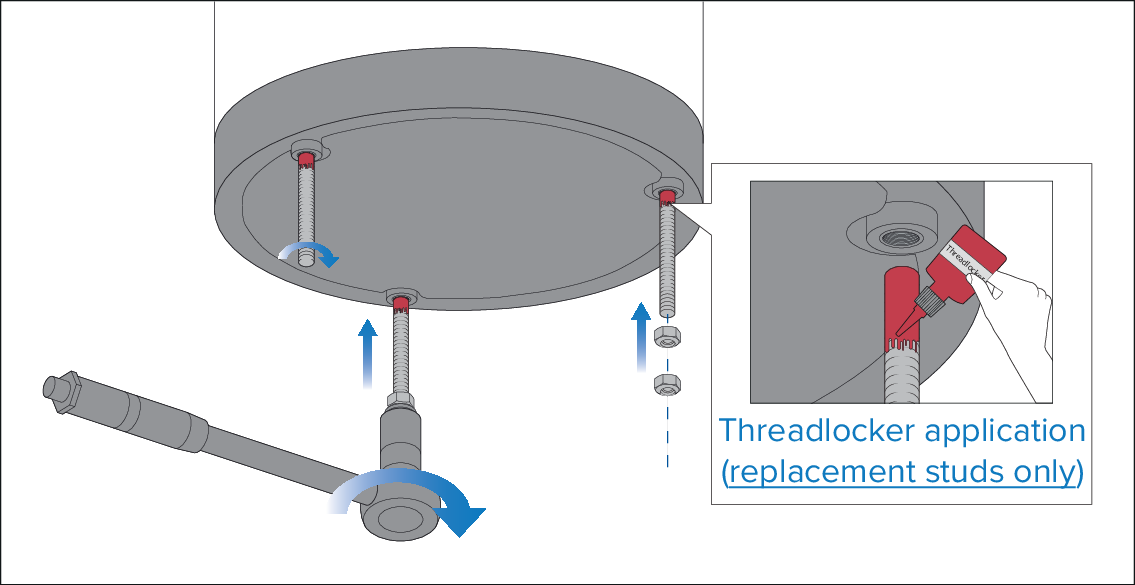

Replacement threaded studs

The supplied threaded studs are provided pre-coated with threadlocker. If the supplied threaded studs are not long enough to accommodate all the fixings and the thickness of the mounting surface, obtain longer replacement marine-grade stainless steel M6 threaded studs (e.g. 316/A4), and apply a suitable threadlocker (e.g. “Loctite 243”), to all replacement studs.

Once the replacement studs are inserted, clean any excess threadlocker from the studs and base, and then allow the threadlocker to cure for 24 hours before proceeding with the installation.
