Power connection
Power must be supplied to the camera from an appropriate power source.
Power connection requirements
Power connectionConnectionPower
12 or 24 V dc nominal supply voltage.
Isolated power supply.
Connected via an appropriately-rated thermal breaker or fused switch (refer to Inline fuse and thermal breaker ratings).

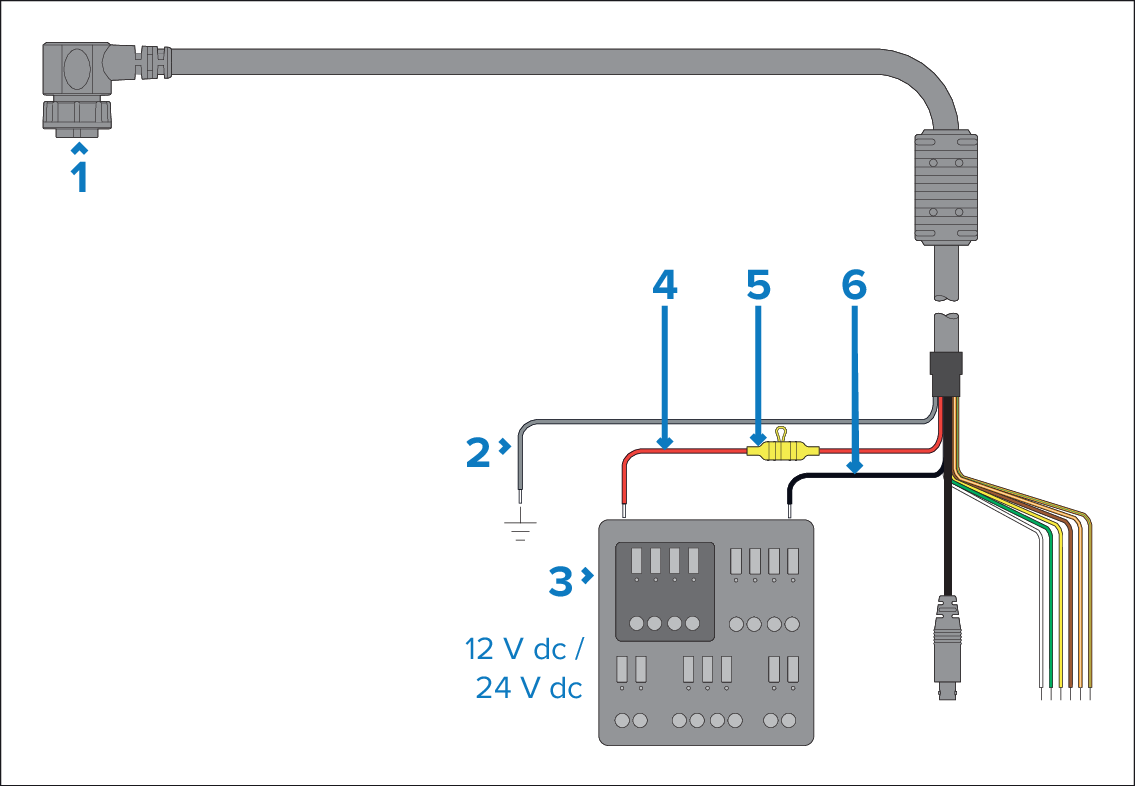

Description |
Connects to: |
|
|---|---|---|
1 |
Power cable |
Product’s power connector. |
2 |
Drain wire (thin black wire) |
Vessel’s RF ground, or negative battery terminal. |
3 |
Connection to 12 V / 24 V power supply. |
Vessel’s power supply. |
4 |
Red cable (positive) |
Power supply’s positive terminal |
5 |
Inline fuse |
Waterproof fuse holder containing a suitably-rated inline fuse (refer to Inline fuse and thermal breaker ratings). |
6 |
Black cable (thick black wire) (negative) |
Power supply’s negative terminal |
